Product Description
*Free Shipping to Continental (Lower 48) States U.S.A.*
Portable Power Pack
Works seemlessly with Dual Battery Controller
Not compatible with Dual Battery Monitor

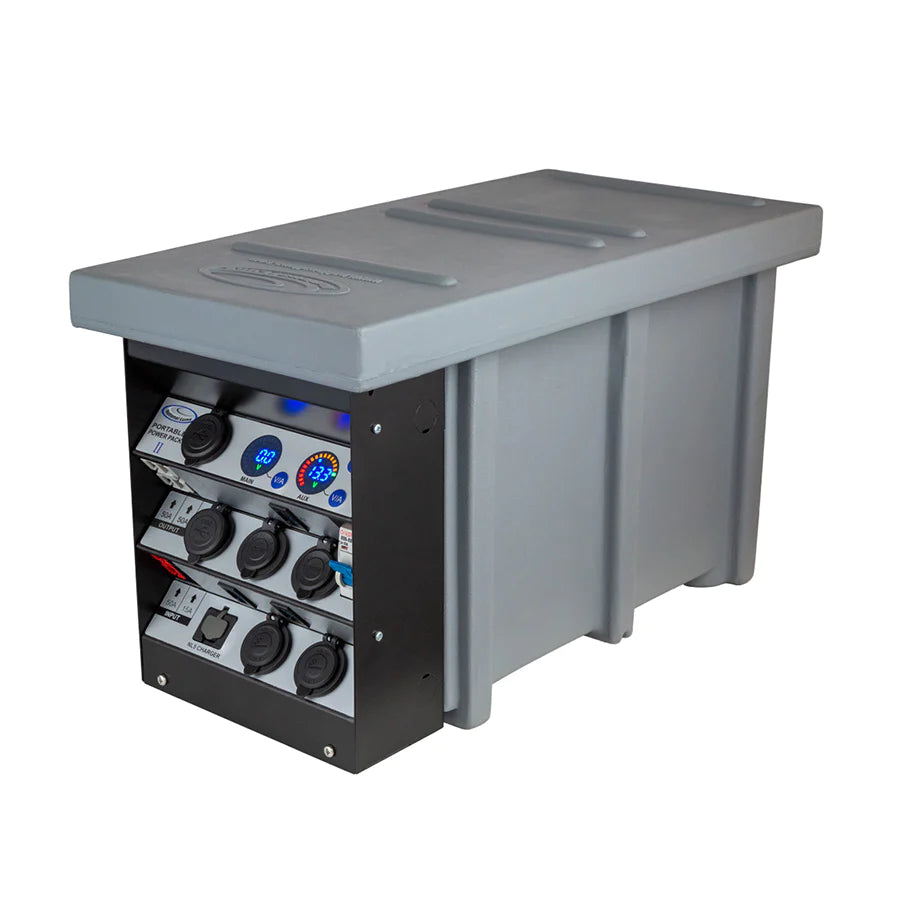

The National Luna Portable Power Pack is a removable, compact battery box with built-in split-charge isolator, ideal for modern vehicles that cannot accommodate a second battery in the engine compartment. The design of the Portable Power Pack allows it to be used as a standby power pack for 12-volt appliances.

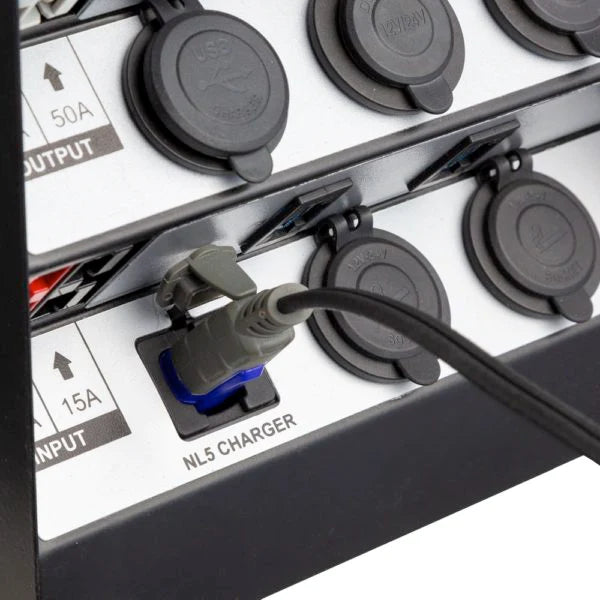

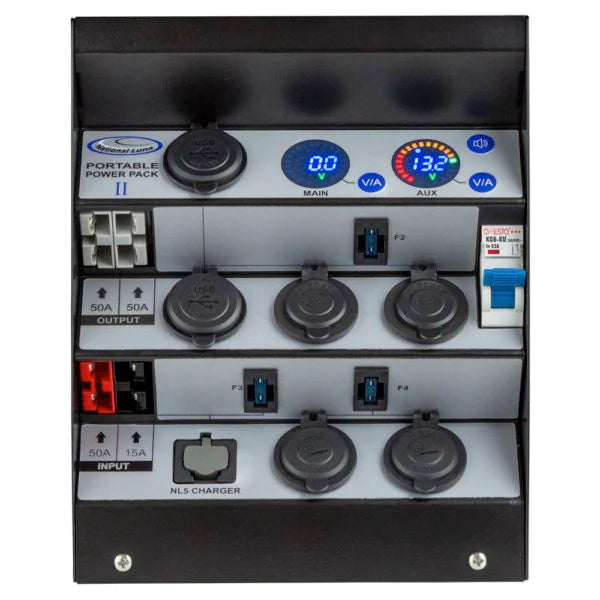

The Portable Power Pack features fused accessory plugs, a polarized high-power plug and built-in battery monitor with low-battery and over-charge warnings. The built-in plugs can be used for low-power accessories such as refrigerators, pumps, compressors, lights and other 12-volt electronic devices. The high-current input-output can be used for higher power requirements such as invertors or battery chargers. The built-in split-charge isolator is fully automatic and does not require additional hardware in the application vehicle.
OPTION - The Dual Battery Controller Plugs into port provided in the portable power pack.
Mounts on dash board or other accessible location to show charge and storage status plus allow over-ride if Aux battery is needed for starting purposes. Sold separately
Features
- Simple installation
- Removable / Portable design
- In-line fuse supplied
- Additional battery terminals and hardware supplied
- Additional cables, hardware and monitors available separately
- 3 year comprehensive warranty
- Fully automatic split-charge isolator

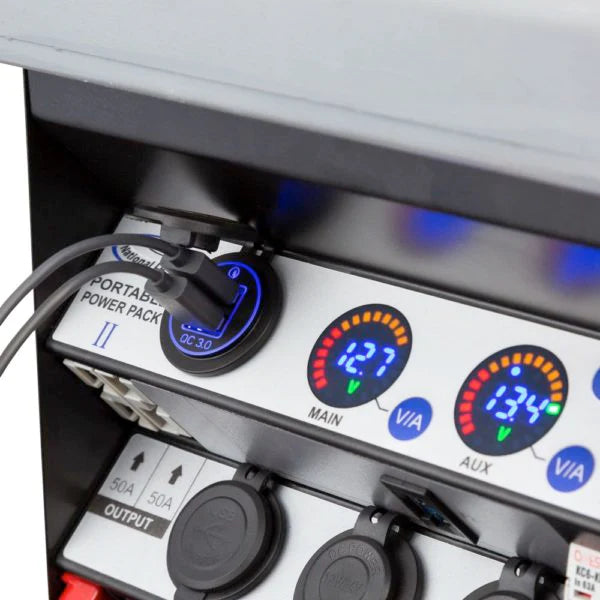

- Built-in battery monitor and input voltage monitor
- Remote battery monitor port (for remote dual battery controller)
- Slide-lock lid
- Bolt-down / Strap-down design
- Electronics isolated from battery compartment
- Can accommodate standard automotive battery types
- 23" of heavy-duty cable supplied with attached coupler (Red Anderson style)
- Fuse-protected plugs and connections
- Battery hold-down bracket supplied
Specifications |
Item #3430 |
---|---|

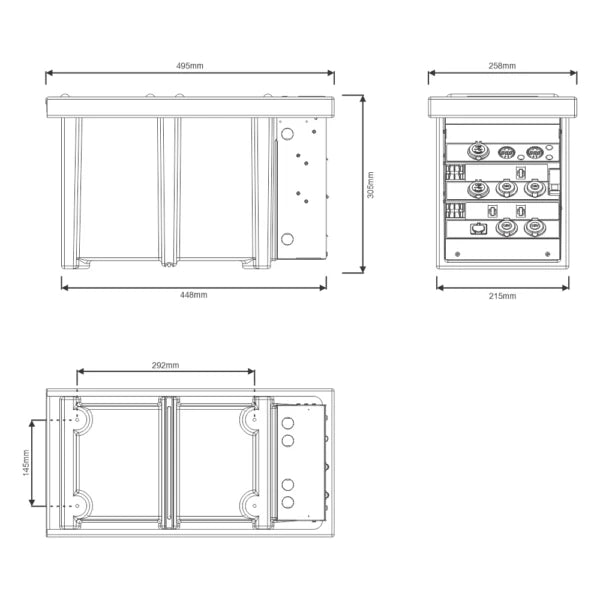

Physical size | 19.75"L x 10.25"W x 11.5"H |
50 amp input-output coupler (60A fused) Grey Anderson | 50 amp charge input (split-charge input) Red Anderson" |
Weight | 12 lbs (excluding battery and cables) |
Remote port | Suits removable data cable for Dual Battery Controller |
Battery monitors | Built-in to power pack, 14-stage auxiliary battery monitor ( 11.4V - 14.2V) , 7-stage input voltage monitor (12.6V - 14.2V) |
Power consumption | 60mA ave (standby), 780mA max (solenoid engaged) |
Shipping Dims | 20"L x11"W x 13"H |
Power supply | 8Vdc - 15Vdc (display range: 11.4V - 14.2V) |
Switched current | 85 amp (continuous) , 400 amp (peak) |
Cable | 23" red and black (46" total) with connector |
Connectors | ""Hella" style output (15A fused) |
Item | BMS-20102/NLS395 |
