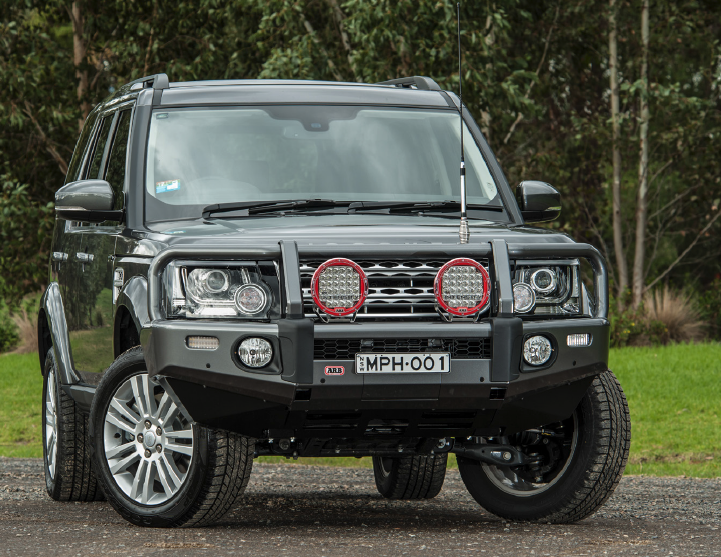

ARB SUMMIT BAR - Land Rover LR4 +2014

Main Line Overland


Collections: Bumpers & Bull Bars

Type: ARB


• Vehicle specific design for the 2014+ Discovery LR4. (Also fits some Range Rover Sport Models)
• Registered design of styling and design components.
• Durable steel construction for maximum protection.
• Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
• 30mm radius on wings and center section.
• Superbly engineered, air bag compatible mounting system secures to chassis via high tensile bolts and hardware. Split pan design for maximum strength and airflow.
• 2 piece grill design for split pan.
• Extensive protection panels on center and either side. The center panel includes additional laser cut and folded flaps for additional airflow.
• 60.3mm outer frames and center cross bar.
• Formed cover strap.
• Pressed form top pan and aluminum (powder coated satin black) winch cover panel.
• Combination style bar to suit both winch and non-winch applications.
• Twin Hi-Lift jack points located below each buffer for optimum strength.
• Durable two-piece buffers including cover strap intersection caps.
• Will accommodate Warn low mount model electric winches up to 10,000lb.
• Provision for Original Equipment front parking sensors. Blanking plugs supplied if no OEparking sensors fitted.
• Provision for Original Equipment headlights washers.
• Provision to accommodate ARB Intensity LED’s and a range of IPF lights.
• Provision for optional ARB Fog Light kit part no 3500590.
• Provision for optional Roller Fairlead Cover part no 3500850.
• Includes ARB LED Indicator and Clearance light.
• Two aerial brackets located on the top of the center fame.
• Bar adds approximately 160mm to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 77kg.
• Zinc rich primer for additional rust resistance.
• Finished in a hard wearing satin black powdercoat

The ARB Summit bar for the fits the following winches:
• Warn M8000, XD9000, XP9.5, XDC 9.5
• Warn ZEON 8, 8-S, 10, 10-S
• Warn ZEON Platinum 10, 10-S

***Truck Freight Shipping, we will contact you with a shipping quote before processing payment.
