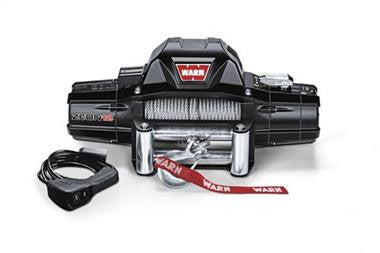

WARN® ZEON 12 Self Recovery Winch

WARN

The WARN ZEON 12 is the face of winching. Bolt one on, and you'll be ready for anything.

A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.

The ZEON 12 is a pulling machine you can rely on to rescue you-or your buddies, from nearly anything.

  • 12,000 lb. (5443 kg) single-line pulling capacity.
  • Includes 80' of durable 3/8" galvanized steel wire rope.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
  • Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
* Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)



Part number: 89120 (12V)
Part number: 90666 (24V) * does not include wire rope
Rated line pull: 12,000 lbs. (5443 kg) single-line
Motor: series wound, 12V DC, 24V DC
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
Weight (kit shipping): 98 lbs. (44 kg)
Rope: 3/8" x 80' (9.52mm x 24.38m) steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Satin-black powder coat



Drop shipping required for this item. We'll contact you for a quote.
