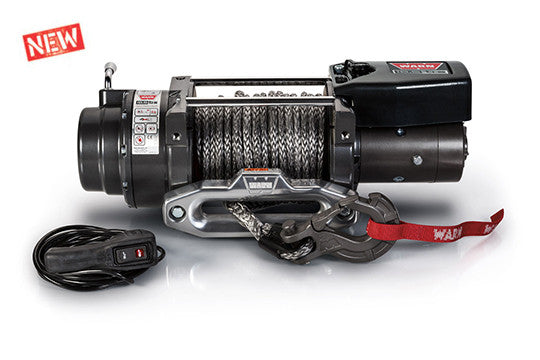

WARN® 16.5ti-s Therometric Self-Recovery Winch

WARN

With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process, and is great for the biggest, heaviest vehicles on or off the pavement.

  • 16,500 lb. capacity
  • Includes 80' of 3/8" Spydura Pro synthetic rope
  • Includes 18,000 lb capacity EPIC hook
  • Thermometric indicator LED provides operator feedback
  • Large-frame winch architecture mounts feet forward
  • Contactor control for the ultimate in reliable electronics
  • Powerful, efficient series-wound motor
  • Durable, smooth three-stage planetary gear train
  • Best-in-class cone brake
  • Limited lifetime warranty
Part Number: 97740
Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Electrical Control: Solenoid Control Pack
Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic direct drive cone
Wire rope: Spydura Pro Synthetic: 80' x 3/8" (9.5mm x 24.3m)
Fairlead: Hawse, polished aluminum
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in. (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)

Weight: Shipping: 104 lbs. (45 kgs); Net Product: 92 lbs. (40kgs)

Drop shipping required for this item. We'll contact you for a quote.
