Product Description
Special Order: Truck Freight Shipping: You will be contacted with freight charges prior to shipping, or contact us for a quote prior to purchase.
AT Habitat Truck Topper
AT Overland Equipment is proud to present the Habitat™ Truck Topper. Purpose built for overland and adventure travel, the Habitat™ uses high-quality materials and provides a lightweight, yet robust camping platform for your pickup truck.

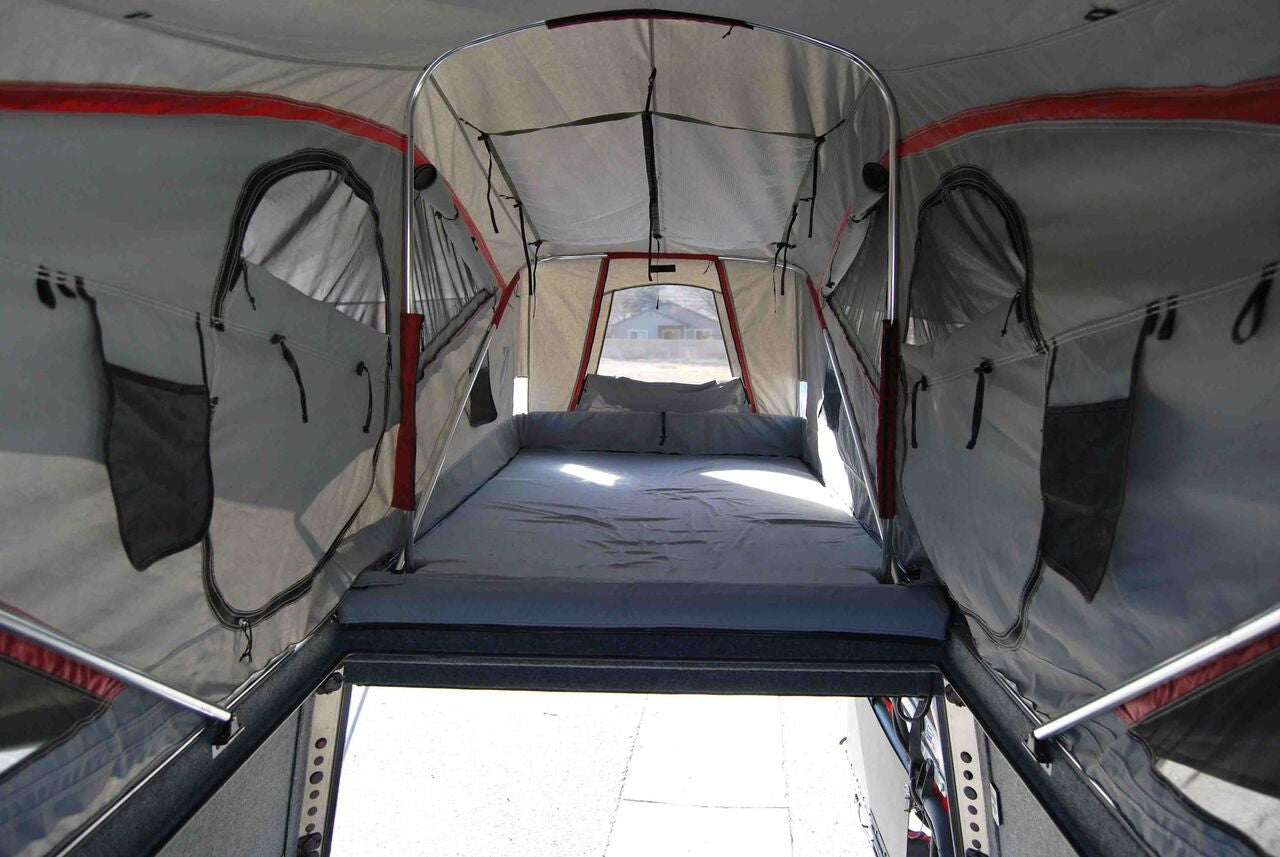

Designed to fill the void between the traditional topper and slide in camper, the Habitat™ can easily be deployed by one person, revealing a cavernous and functional interior space. The design allows for full standup room inside the bed of the truck under it’s protective all-season tent - an exclusive design by Nemo Equipment.
The cantilever sleeping platform, supported by stout 6061 aluminum rods, features a comfortable dense foam mattress that supports up to 600 pounds. Weighing in at just 340 pounds, the Habitat™ is available for both full and mid-size pickup trucks.
Standard Features: (Base price starts at $13,900, 8ft bed units start at $14,400)
- Easy 1 minute deployment and stowage
- Sleeps 2 standard
- Built in mattress
- Clothing gear loft and 4 side pockets in tent
- Insulated sleeping platform and shell walls
- Built in awning by design covering entrance area
- All aluminum composite construction
- ruggedly designed for 4×4 travel
- All season tent, no rain fly required
- Standard color: Clear coated aluminum frame with white painted side panels
- Dimensions closed:
- 32.75″ tall with roof Bars, 32.25″ Tall with Track only, 60″ Wide Roof Bars
- 64″ Wide at base, 53″ Wide at top
- 93.5″ Long at top, 76.375′ Long at base
- Dimensions open:
- 87″ x 48″ x 2″ Hi-Density Foam Mattress with washable cover
- 92″ Standing room at Rear, 81″ Standing room at front
- 186.5″ Long when deployed
- 51″ of headroom over bed area
Roof Overhang:
- 20″ on 6′ bed Tacoma, 32″ on 5′ bed Tacoma
- 23″ from top of truck bed to the underside of the overhang
Materials Specifications List:
- Insulated aluminum composite panels, Nemo Equipment Habitat Tent: Teflon impregnated ripstop nylon
- Stainless Steel hardware
- .060″ 5052 CNC formed aluminum
- Base weight: 340 lbs
- roof weight capacity: 350 lbs
- Cantilever Bed loading capacity” 600 lbs
Options: (subject to availability call to order)
-
Drivers Side Half Slider Glass Window w/ Sliding Bug Screen
-
Passenger Side Glass Half Slider Window w/ Sliding Bug Screen
-
Driver Side 450x 1100 Tern Acrylic Half Slider w/ Fixed Bug Screen
-
Passenger Side 450x 1100 Tern Acrylic Half Slider w/ Fixed Bug Screen
-
Drivers Side 450x 1100 Tem Euro Window: Double Pane Acrylic Top Hinge w/Screen+Blind
-
Passenger Side 450x 1100 Tem Euro Window: Double Pane Acrylic Top Hinge w/Screen+Blind
-
Rear Liftgate Window
-
Drivers Side 450x1100 Tem Hatch Door: Top Hinge
-
Passengers Side 450x1100 Tem Hatch Door: Top Hinge
-
Pre-Wire for Solar w/ 10GA Wire in Rear Corner (SAE Socket) DS or PS
-
Habitat LED Lid Lights
-
Roof Rack: Full Length, 89” Aircraft Track w/ 3 Cross Bars
-
Roof Rack: Full Length, 89” Aircraft Track Only
-
Rhino-Rack 70” Roof Track (Compatible with Yakima & Thule)
-
Nemo Awning Installed DS or PS
-
Habitat Bi-Fold Sleep Platform (Each)
-
Paint (Paint Code Required)
-
Painted Hatch Door (Paint Code Required)
-
NL Power Pack w/ Group 31 Deep Cycle Battery in Truck Bed
-
NL DC25 Power Pack w/ 105A Lithium Battery in Truck Bed
-
Habitat Room Enclosure
-
Tacoma Bed Stiffeners Parts
-
Call 844-656-7626 for fitment and options for this item. Base price does not include freight shipping or installation labor
