The Jeep JLU Plate System is now available for 2018+ Jeep JLU 4-door models.
The Jeep Plate System features a Bullet Liner covered Baltic Birch plywood. This plate allows the user to easily install various Jeep Specific modules including single and double drawer systems as well as the ever famous Icebox module and the new CampKitchen 2.3 for Jeeps. The plate system also makes a great platform for securing your own storage or gear including dog crates, other fridge slide brands, etc.
Installation requires the permanent removal of the carpet flooring between the two sides panels of factory plastic. Access to the factory jack will remain with a removable part.
*** THE JLU PLATE FOR NON SUBWOOFER EQUIPPED VEHICLES ***

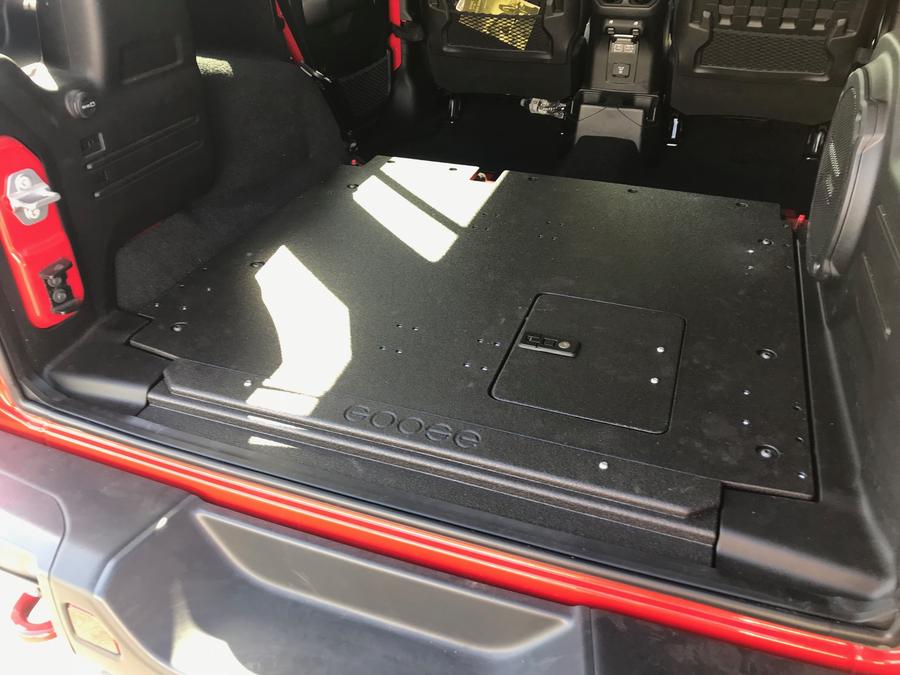

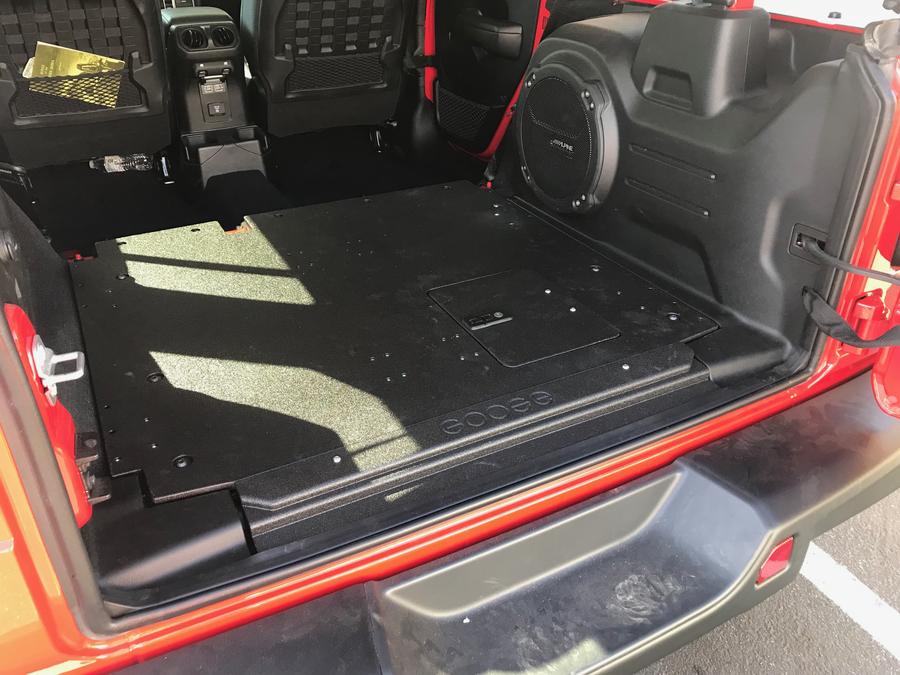

You now have the option to choose which side of the vehicle the access door is installed into. The image shown reflects the access door shown on the passenger side.
Please select the appropriate position for your build, Drivers Side Access or Passenger Side Access.
IMPORTANT NOTES ON MODULES AND FRIDGES
Due to the large factory subwoofer located on the passenger side of the vehicle and the shallow depth there are some notes to take into consideration when outfitting with refrigerators and or storage modules.
SUBWOOFER VERSION ONLY
Since the factory subwoofer protrudes into the vehicle space quite a bit we have had to reduce the width of the modules offered to our standard 19-3/16" width and paired it with a new line of 18-3/16" wide modules. Which means you can install an IceBox or a Campkitchen in the 19-3/16" width and pair it with a single or double drawer module that is 18-3/16" wide.
NON-SUBWOOFER VERSION ONLY
Since the Jeep JL Interior is quite a bit narrower we have had to reduce the width of the modules offered to our standard 19-3/16" width and paired it with a new line of 20-3/16" wide modules. Which means you can install an IceBox or a Campkitchen in the 19-3/16" width and pair it with a single or double drawer module that is 20-3/16" wide.
FRIDGE LOCATIONS IN THE JEEP JL
The depth of the Jeep JL interior is shorter than the JK and therefore, if you are planning on using a CampKitchen or IceBox module you will only be able to fit an Engel 45, or the Dometic CXF40, ONLY if you remove the rear handles. On the passengers side there is more depth and you can fit the ARB 50 or similar sized fridges.
Product weight is only 28.1 pounds.
