Product Description
Model: GP-DC-KITS

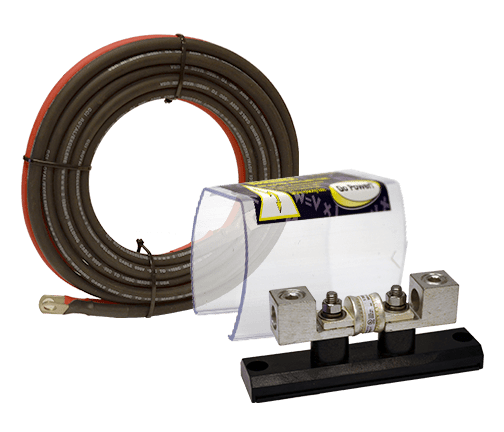

Go Power! DC Inverter Installation Kits include everything you will need to properly connect your Go Power! Inverter to the batteries.Kits include*:
- 10' large gauge battery cables and tie-downs
- Appropriate inverter fuse and fuse block (The GP-DC-KIT1 includes an inline fuse, NOT fuse block).
*For a more detailed list, see Product Specifications below.
Use with | Fuse |
Cable Gauge
(AWG)
|
|
---|---|---|---|
GP-DC-KIT5 | 2600 – 3000W inverters | 400 amp | 4/0 |
GP-DC-KIT4 | 2000 – 2500W inverters | 300 amp | 2/0 |
GP-DC-KIT3 | 1100 – 1800W inverters | 200 amp | #2 |
GP-DC-KIT2 | 700 – 1000W inverters | 100 amp | #4 |
GP-DC-KIT1 | 200 – 600W inverters | 60 amp | #6 |
ODEL | Included Items |
---|---|
GP-DC-KIT5 | Fuse Block 400, 10ft. #4/0 AWG cables, 11” Cable Ties, 3/4” Cable clamps, #10x 3/4” screws |
GP-DC-KIT4 | Fuse Block 300, 10ft. #2/0 AWG cables, 11” Cable Ties, 5/8” Cable clamps, #10x 3/4” screws |
GP-DC-KIT3 | Fuse Block 200, 10ft. #2 AWG cables, 11” Cable Ties, 1/2” Cable clamps, #10x 3/4” screws |
GP-DC-KIT2 | Fuse Block 110, 10ft. #4 AWG cables, 11” Cable Ties, 3/8” Cable clamps, #10x 3/4” screws |
GP-DC-KIT1 | Inline Fuse 60, 10ft. #6 AWG cables, 11” Cable Ties, 5/16” Cable clamps, #10x 3/4” screws |
