Product Description

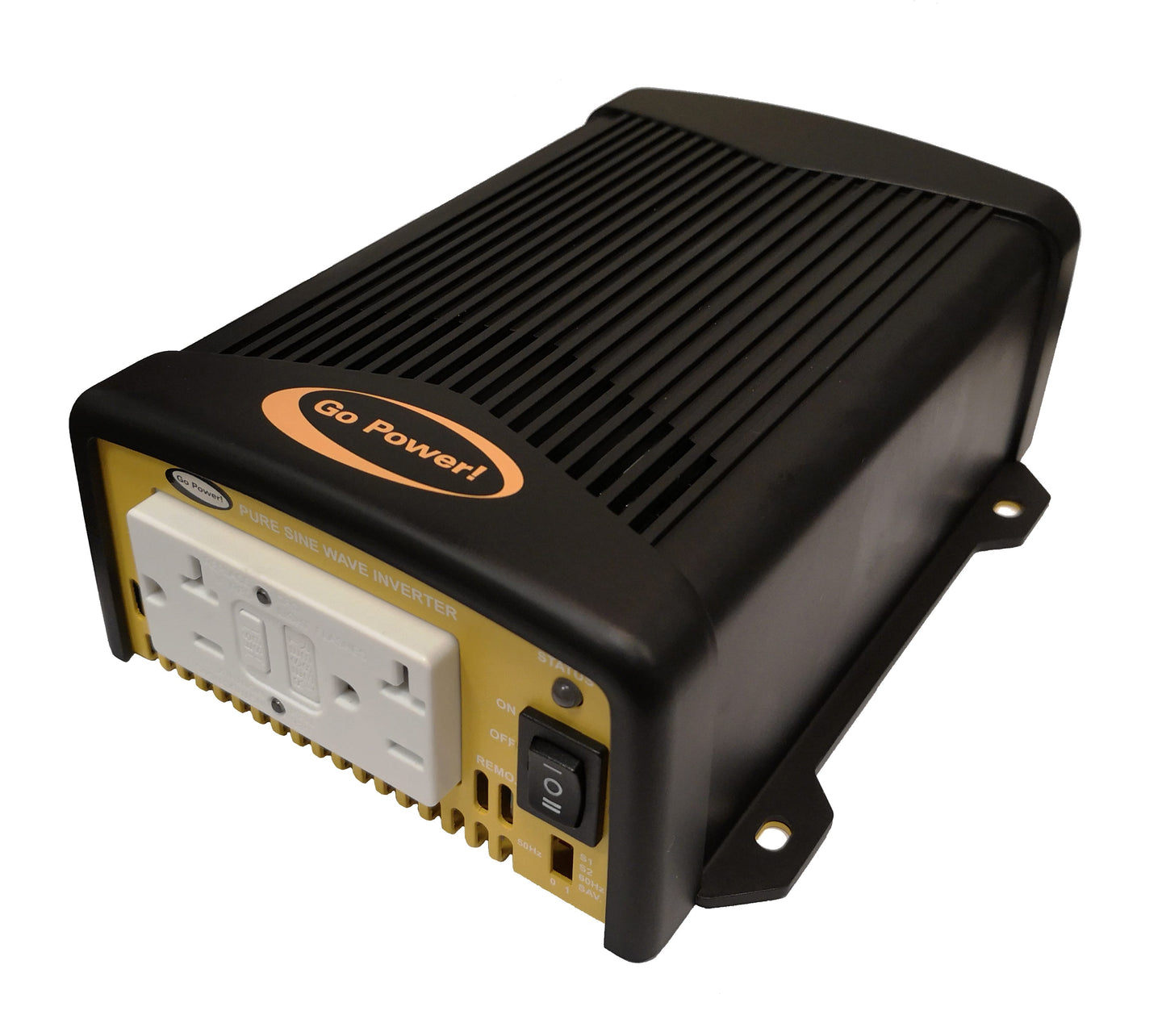

MODEL: GP-ISW400-12 & 24
Premium mobile power in a sleek, lightweight profile. Bring reliable, cUL-certified power on the road with Go Power!’s Industrial Pure Sine Wave Inverter.- Produces an exact replica of AC power for optimal performance
- Runs any device in wattage range without interference
- Durable, low profile design
- Powersave mode
- Dual GFCI outlets
- Wide voltage range
- Full overload protection
- 2 year warranty
Additional information can be found in:
Power Specs
GP-ISW200 |
GP-ISW400 |
|
|
Continuous Output Power |
200 W (VA) |
400 W (VA) |
|
Maximum Surge Rating |
250 W (VA) |
800 W (VA) |
|
Output Waveform |
Pure Sine Wave |
|
|
Output Voltage Range ± 3% |
100 – 120 VAC (Dip Switch Selectable) |
|
|
Input Voltage |
12 V: 10.5 – 16 VDC 24 V: 20 – 32 VDC |
|
*Specifications subject to change without notice
Operating Specs
GP-ISW200 |
GP-ISW400 |
|
|
Efficiency |
12 V: 89% 24 V: 91% |
12 V: 88% 24 V: 89% |
|
No Load Current Draw / Powersave |
12 V: < 0.5 A 24 V: < 0.4 A |
12 V: < 1A @12VDC 24 V: < 0.5A @24VDC |
|
Input Protection |
Over/Under Voltage, Reverse Polarity (Fused) |
|
|
Output Protection |
Short Circuit, Overload, Over Temperature |
|
|
Low Battery Alarm ± 0.3V (± 0.5 V for 24 V inverters) |
12 V: 10 V 24 V: 21 V |
|
|
Low Battery Shutdown ± 0.3V (± 0.5 V for 24 V inverters) |
12 V: 10 V 24 V: 20 V |
|
|
Operating Temperature Range |
-4˚F – 104˚F (-20˚C – 40˚C) |
|
|
Storage Temperature Range |
-22˚F – 158˚F (-30˚C – 40˚C) |
|
|
Cooling |
Temperature and Load Controller Cooling Fan |
|
|
AC Output Connections |
Dual GFCI Outlet |
Dual GFCI Outlet |
|
Remote Power Option |
Yes |
|
*Specifications subject to change without notice
Product Spec
GP-ISW200 |
GP-ISW400 |
|
|
Dimensions (L x W x H) |
7.4” x 5.9” x 2.7” (187mm x 150mm x 68mm) |
7.4” x 5.9” x 2.7” (187mm x 150mm x 68mm) |
|
Weight |
3.5 lbs (1.6 kg) |
3.5 lbs (1.6 kg) |
|
Warranty |
2 Years |
|
|
Inverter Install Kits |
GP-DC-KIT1 |
GP-DC-KIT1 |
|
Remotes (Optional) |
GP-ISW-R / GP-SWR-A |
|
|
Regulations and Safety |
EMC/Certified FCC Class B/Certified UL 458 |
|
|
*Specifications subject to change without notice |
||
