Product Description

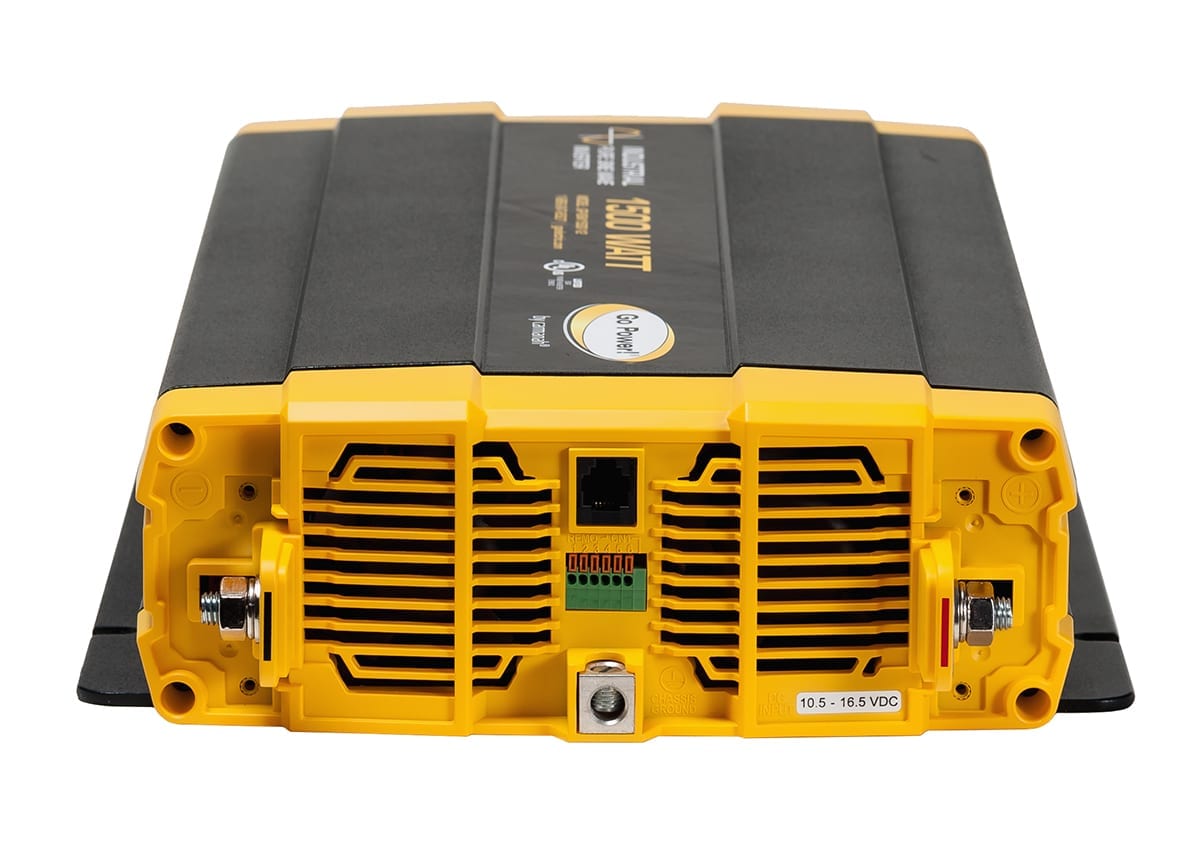

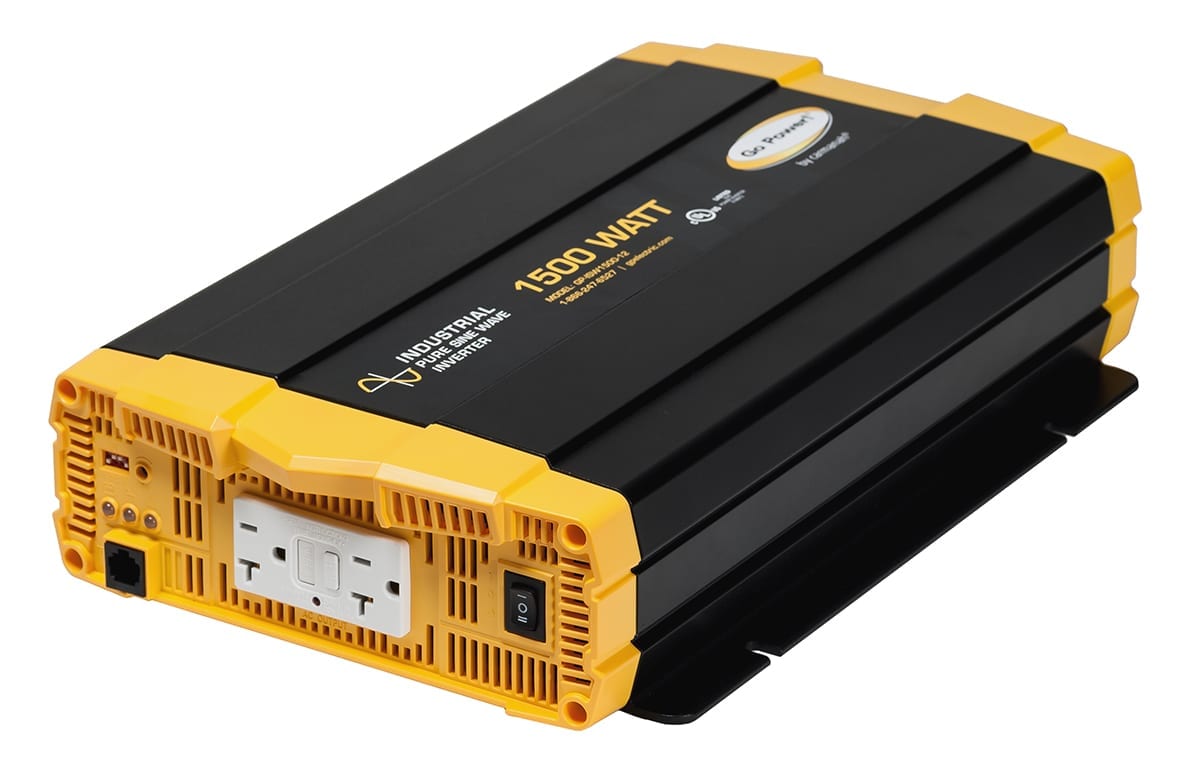

GP-ISW1500
A strong performer for larger loads that demand a clean, pure source of AC power, the Go Power! GP-ISW1500 can run appliances, and sensitive electronic equipment like TVs, stereos, computers and more. The GP-ISW1500 is a good choice for powering appliances, electronic equipment like TVs, stereos, computers, or as a source of emergency backup power.
Power Specs
GP-ISW700 |
GP-ISW1000 |
GP-ISW1500 |
|
|
Continuous Output Power |
700 W (VA) |
1000 W (VA) |
1500 W (VA) |
|
Maximum Surge Rating |
1230 W (VA) |
1750 W (VA) |
2650 W (VA) |
|
Output Waveform |
Pure Sine Wave |
||
|
Output Voltage Range ± 3% |
100 – 120 VAC (Dip Switch Selectable) |
||
|
Input Voltage |
12 V: 10.5 – 16.5 VDC 24 V: 21 – 33 VDC |
||
|
Efficiency |
12 V: 91% 24 V: 93% |
12 V: 92% 24 V: 93% |
12 V: 91% 24 V: 92% |
Operating Specs
GP-ISW700 |
GP-ISW1000 |
GP-ISW1500 |
|
|
No Load Current Draw / Powersave |
12 V: ≤ 1.5 A / < 0.1 A 24 V: ≤ 0.8 A / < 0.06 A |
12 V: ≤ 1.5 A / < 0.1 A 24 V: ≤ 0.8 A / < 0.06 A |
12 V: ≤ 1.8 A / < 0.1 A 24 V: ≤ 1.0 A / < 0.05 A |
|
Input Protection |
Over/Under Voltage, Reverse Polarity (Fused) |
||
|
Output Protection |
Short Circuit, Overload, Over/Under Temperature |
||
|
Low Battery Alarm ± 0.3 V (± 0.5 V for 24 V inverters) |
12 V: 10.5 V 24 V: 21 V |
||
|
Low Battery Shutdown ± 0.3 V (± 0.5 V for 24 V inverters) |
12 V: 10.5 V 24 V: 21 V |
||
|
Operating Temperature Range |
-4˚ F – 104˚ F (-20˚ C – 40˚ C) |
||
|
Storage Temperature Range |
-22˚ F – 158˚ F (-30˚ C – 40˚ C) |
||
|
Cooling |
Temperature and Load Controller Cooling Fan |
||
|
AC Output Connections |
Dual GFCI Outlet |
||
|
Remote Power Option |
Yes |
||
*Specifications subject to change without notice
Product Specs
GP-ISW700 |
Gp-ISW1000 |
GP-ISW1500 |
|
|
Dimensions (L x W x H) |
13.00” x 7.87” x 3.27” (330 mm x 200 mm x 83 mm) |
14.65” x 7.87” x 3.27” (372 mm x 200 mm x 83 mm) |
16.59” x 9.76” x 3.27” (421 mm x 248 mm x 83 mm) |
|
Weight |
5.73 lbs (2.6 kg) |
7.19 lbs (3.26 kg) |
9.13 lbs (4.14 kg) |
|
Warranty |
2 Years |
||
|
Inverter Install Kits |
GP-DC-KIT2 |
12 V: GP-DC-KIT3 24 V: GP-DC-KIT2 |
|
|
Remotes (Optional) |
GP-ISW-R / GP-SWR-A |
||
|
Regulations and Safety |
UL 458, FCC Part 15 Class B |
||
|
*Specifications subject to change without notice |
|||

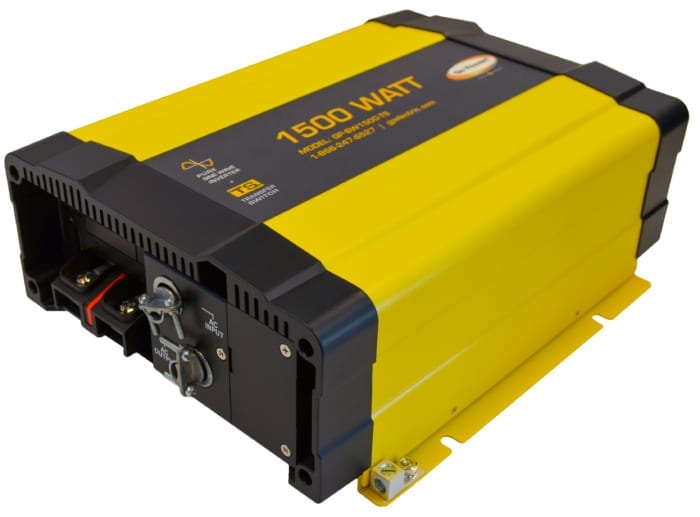

MODEL: GP-SW1500-TS
Go Power!’s GP-SW1500-TS pure sine wave inverter with transfer switch provides robust cUL certified AC power with a built-in 20-amp transfer switch.
- Run more circuits: microwave, TV, outlets, etc.
- A perfect replica of AC power
- Built-in 20 amp Transfer Switch
- Can use a solar controller to turn on and off (GP-PWM-30)
- 2-year warranty
- Run 1500 watts of power from battery
- Durable, low profile design
Transfer Switch Product Specification
|
DC Voltage |
12VDC |
|
Voltage Range |
10.0 ~ 16.0VDC |
|
No Load Current |
< 0.9A |
|
Continuous Output Power |
1500W (de-rating after 40°C, refer to de-rating curve) |
|
Surge Power (<0.2Sec) |
2400W |
|
Peak Power (<3 Min) |
1800-2400W |
|
Output Power (<3 Min) |
1500-1800W |
|
Frequency |
50 / 60 Hz ± 0.1% |
|
Output Voltage |
100 / 110 / 115 / 120VAC ±3% |
|
Efficiency Max. |
88% |
|
Output Waveform |
Pure Sine Wave |
|
Circuit Breaker |
20A |
|
Transfer Switch |
Standard ATS : Inverter to utility AC: <5ms.; |
|
BAT.Low Alarm ± 3% |
10.5VDC |
|
BAT.Low Shut-down ± 3% |
10.0VDC |
|
Input Protection |
Reverse Polarity (Fuse) / Under Voltage / Over Voltage |
|
Output Protection |
Short Circuit / Overload / Over Temperature / Over Voltage |
|
Operating Temp. |
-20 °C~40 °C refer to GP-SW1500TS power de-rating curve |
|
Storage Temp. |
-40 °C~70 °C |
|
Relative Humidity |
Max. 90%, non-condensing |
|
Regulations and Safety |
Certified UL 458 (6th Edition), Certified FCC class B |
|
Dimensions (L x W x H) |
283x128x351 mm / 11.14×5.04×13.82 inch |
Additional information can be found in:
