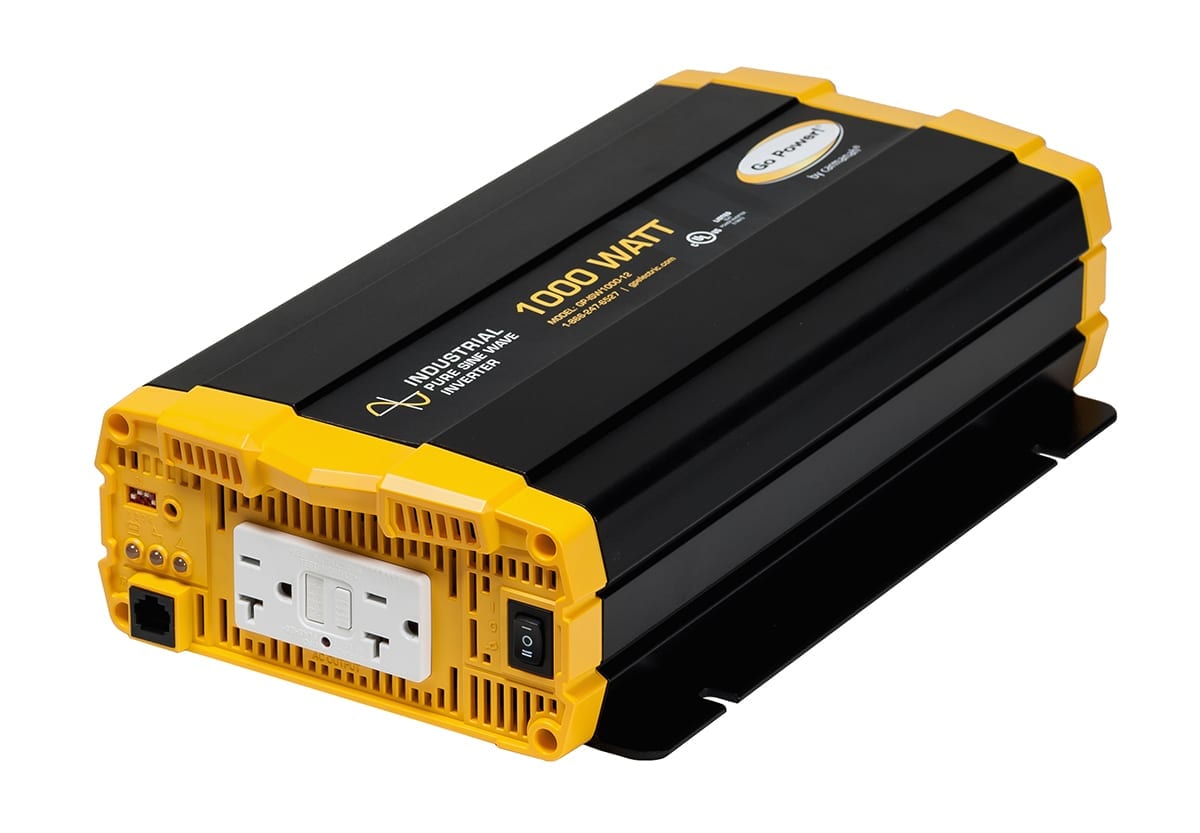

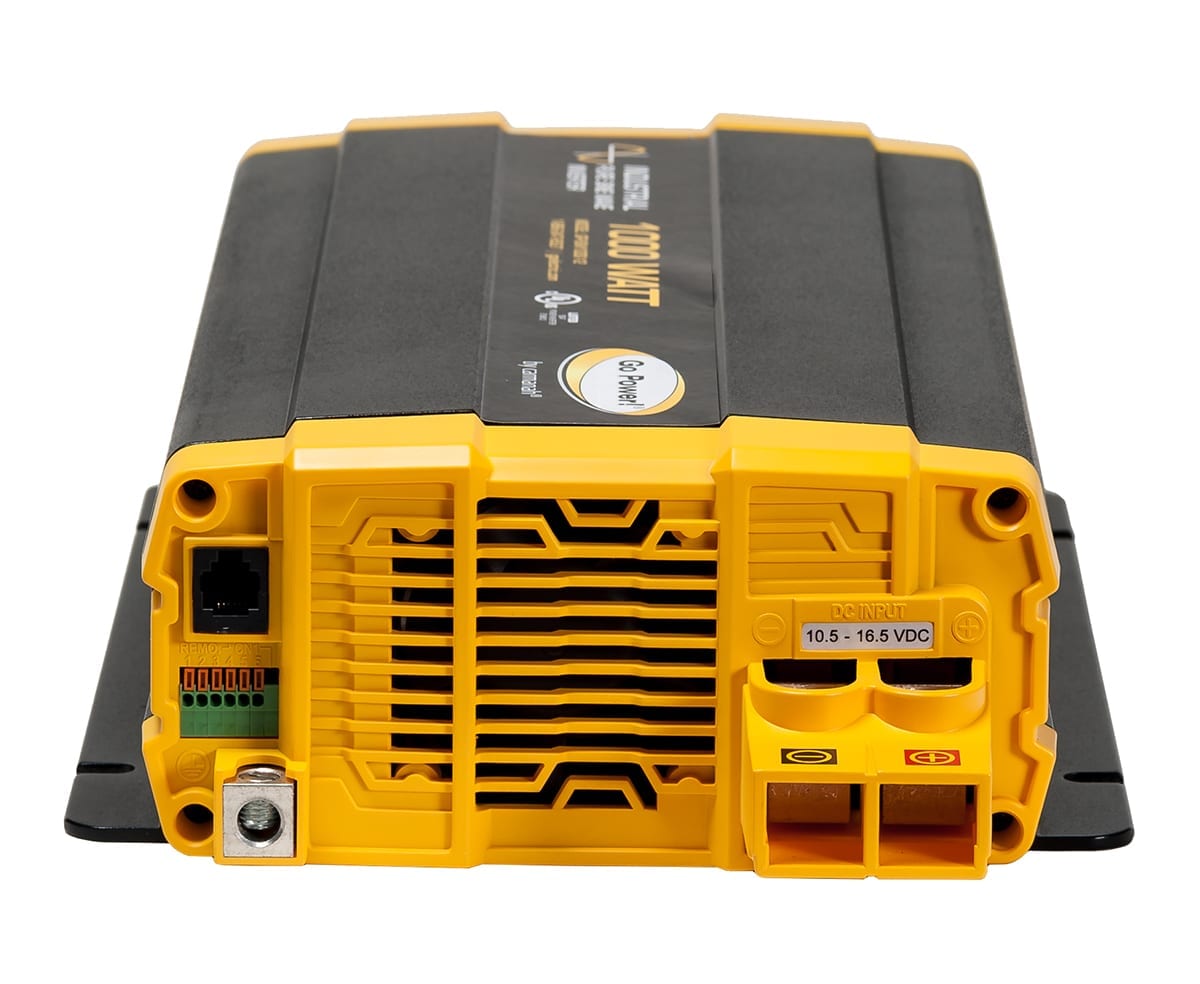

Go Power!- 1000 Watt Industrial Pure Sine Wave Inverter

Go Power!



MODEL: GP-ISW1000

A solid choice for your mid-range power needs, the Go Power! GP-ISW1000 industrial pure sine wave inverter offers plenty of clean AC power for all your portable electronic equipment. The Go Power! GP-ISW1000 inverter is ideal for handling sensitive loads and for improving AC equipment performance in systems with 12 VDC input. A solid choice for powering electronic equipment like TVs, stereos, computers, or as a source of emergency backup power, the Go Power! GP-ISW1000 is suitable for a range of applications. View our complete line of Industrial Pure Sine Wave inverters. Additional information can be found in:

Power Specs

GP-ISW700

GP-ISW1000

GP-ISW1500

Continuous Output Power

700 W (VA)

1000 W (VA)

1500 W (VA)

Maximum Surge Rating

1230 W (VA)

1750 W (VA)

2650 W (VA)

Output Waveform

Pure Sine Wave

Output Voltage Range ± 3%

100 – 120 VAC (Dip Switch Selectable)

Input Voltage

12 V: 10.5 – 16.5 VDC

24 V: 21 – 33 VDC

Efficiency

12 V: 91%

24 V: 93%

12 V: 92%

24 V: 93%

12 V: 91%

24 V: 92%



Operating Specs

GP-ISW700

GP-ISW1000

GP-ISW1500

No Load Current Draw / Powersave

12 V: ≤ 1.5 A / < 0.1 A

24 V: ≤ 0.8 A / < 0.06 A

12 V: ≤ 1.5 A / < 0.1 A

24 V: ≤ 0.8 A / < 0.06 A

12 V: ≤ 1.8 A / < 0.1 A

24 V: ≤ 1.0 A / < 0.05 A

Input Protection

Over/Under Voltage, Reverse Polarity (Fused)

Output Protection

Short Circuit, Overload, Over/Under Temperature

Low Battery Alarm ± 0.3 V

(± 0.5 V for 24 V inverters)

12 V: 10.5 V

24 V: 21 V

Low Battery Shutdown ± 0.3 V

(± 0.5 V for 24 V inverters)

12 V: 10.5 V

24 V: 21 V

Operating Temperature Range

-4˚ F – 104˚ F (-20˚ C – 40˚ C)

Storage Temperature Range

-22˚ F – 158˚ F (-30˚ C – 40˚ C)

Cooling

Temperature and Load Controller Cooling Fan

AC Output Connections

Dual GFCI Outlet

Remote Power Option

Yes

*Specifications subject to change without notice

Product Specs

GP-ISW700

GP-ISW1000

GP-ISW1500

Dimensions (L x W x H)

13.00” x 7.87” x 3.27”

(330 mm x 200 mm x 83 mm)

14.65” x 7.87” x 3.27”

(372 mm x 200 mm x 83 mm)

16.59” x 9.76” x 3.27”

(421 mm x 248 mm x 83 mm)

Weight

5.73 lbs (2.6 kg)

7.19 lbs (3.26 kg)

9.13 lbs (4.14 kg)

Warranty

2 Years

Inverter Install Kits

GP-DC-KIT2

12 V: GP-DC-KIT3

24 V: GP-DC-KIT2

Remotes (Optional)

GP-ISW-R / GP-SWR-A

Regulations and Safety

UL 458, FCC Part 15 Class B

*Specifications subject to change without notice
