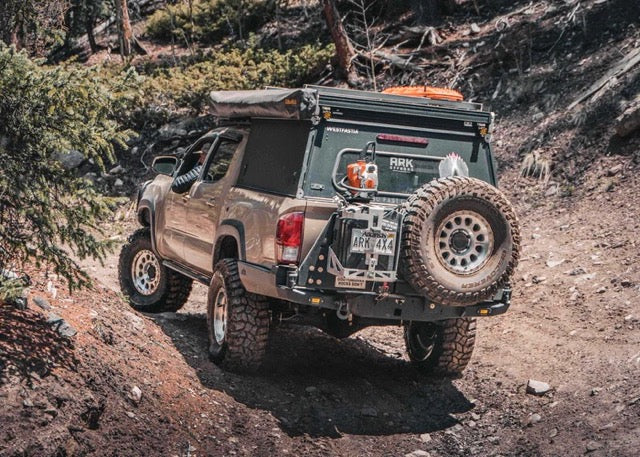

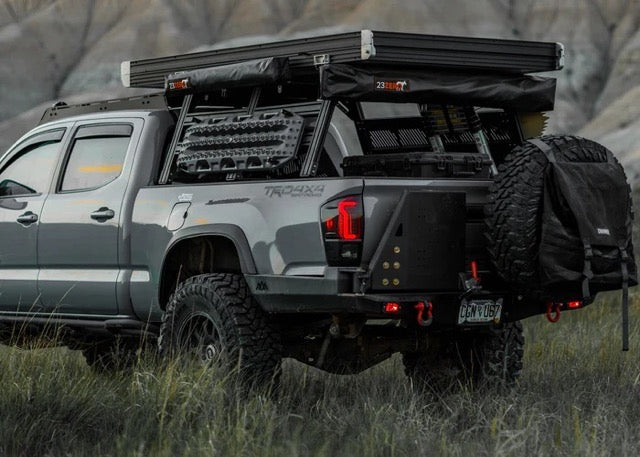

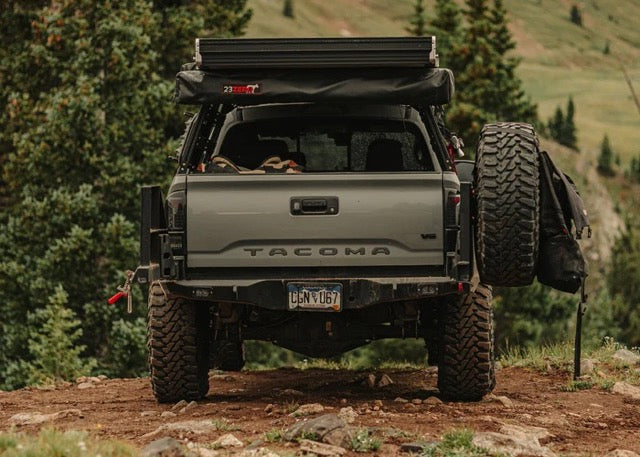

We are super stoked to launch our newly designed high clearance dual swing out for the 3rd gen Toyota Tacoma. As part of our Hi-Lite series, this dual swing out fits right in because it's super high clearance and lightweight. The bumper itself is made from steel while the swinging doors are made from aluminum. This keeps the weight significantly lighter than any other rear swing out system, eliminates rust, and allows for easy drilling and configuring of the 2 rear swinging gates for accessories.
It's vital to add protection to your vehicle, especially to the long rear end of a truck because of its small departure angle. This bumper requires a bedside cut and replaces the vulnerable, weak sheet metal with steel all along the perimeter, while also providing you a place for your spare tire and many other customizable accessories.
Compatible with the factory rear camera. No splicing or adding additional wire to the rear camera is required. Just a simple reroute of the existing cable into the bumper.
All of our bumpers come with black powder coat, and all hardware and extra pieces you will need for the install. (See below) This bumper does NOT come with any of the bolt on accessories shown. Our available options include rear lights and a spare tire carrier.
This bumper does NOT work with the rear factory sensors.

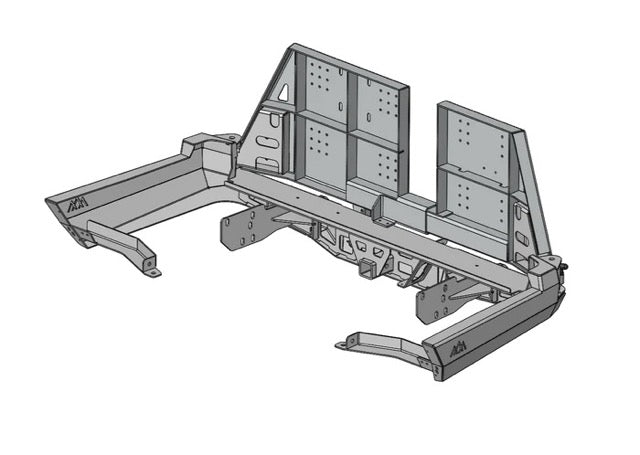

- All one piece, steel bumper with aluminum swing doors
- Requires a bedside cut
- Included edge trim
- Included license plate tag lights
- Included trailer wiring harness extension
- Included rear camera bracket (no splicing required)
- Recessed trailer wiring plug on inside of bumper

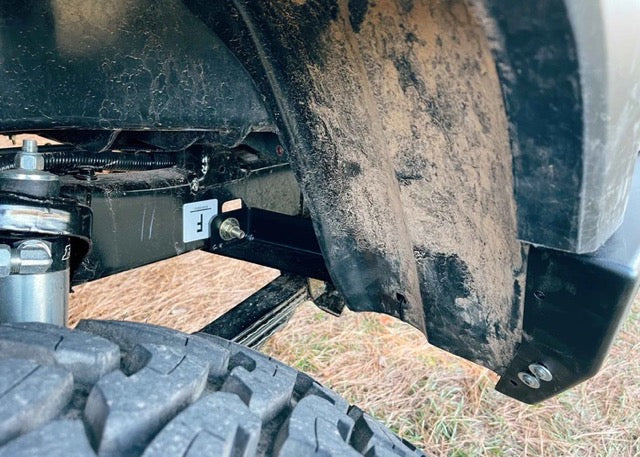

- x2 steel side braces that tie the wings of the bumper to the frame
- All grade 8 hardware

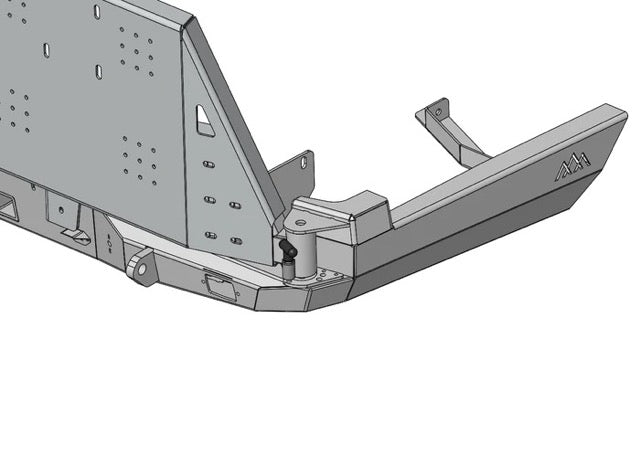

- Welded, double sheer point spindle assembly

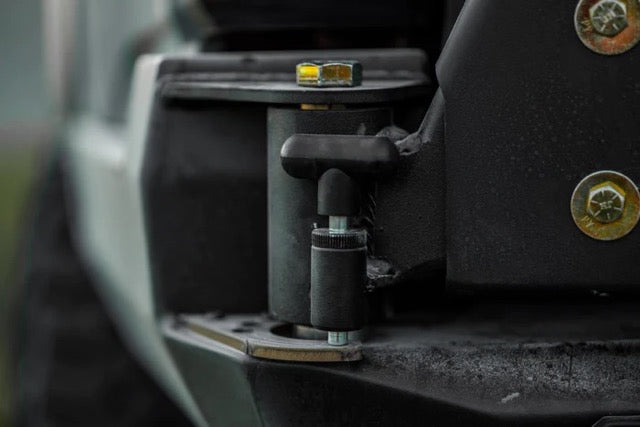

- Spring-loaded T-handle door pin stoppers
- Integrated 2" receiver behind flip up license plate
- Holes for license plate or a flip up license plate bracket (sold separately)
- x2 steel 3/4" thick recovery shackle mounts

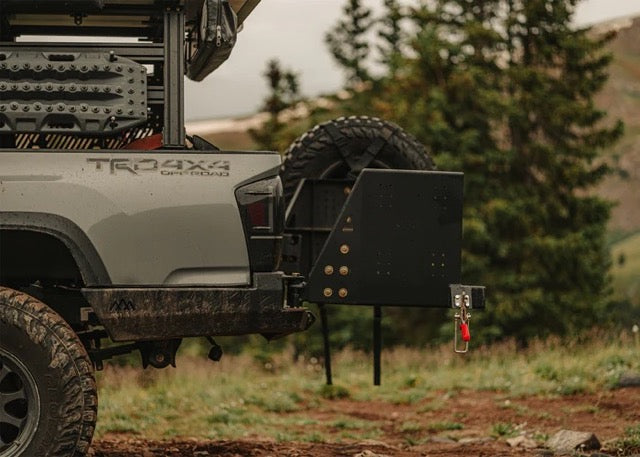

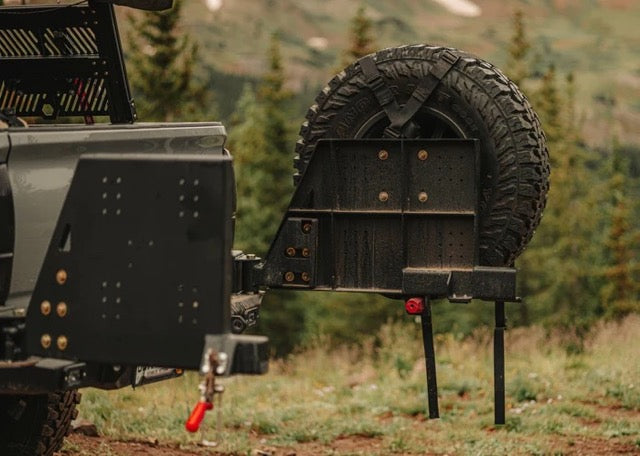

- x2 aluminum swing out doors
- Included bearing and seal kit

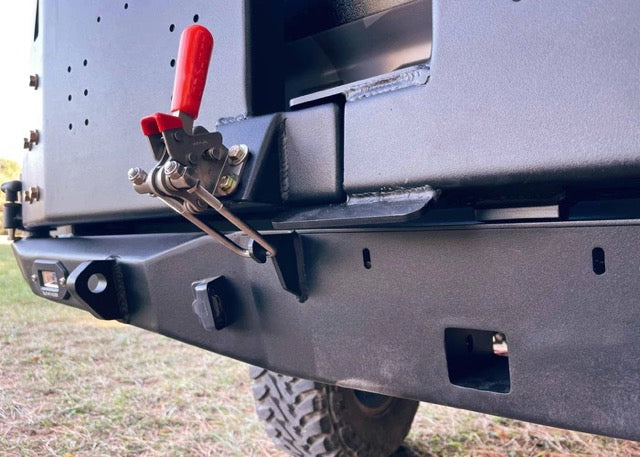

- x2 spring loaded locking pins

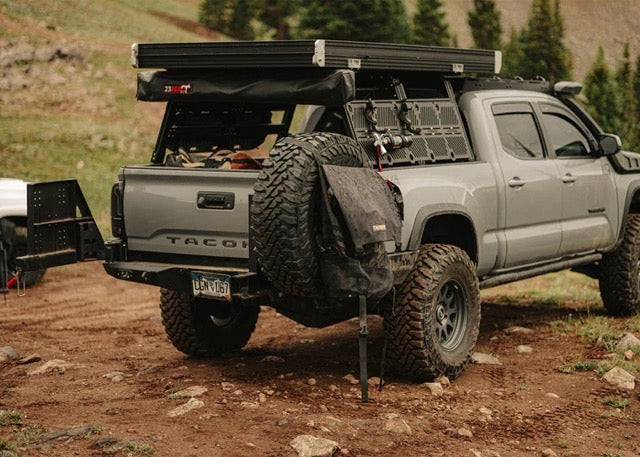

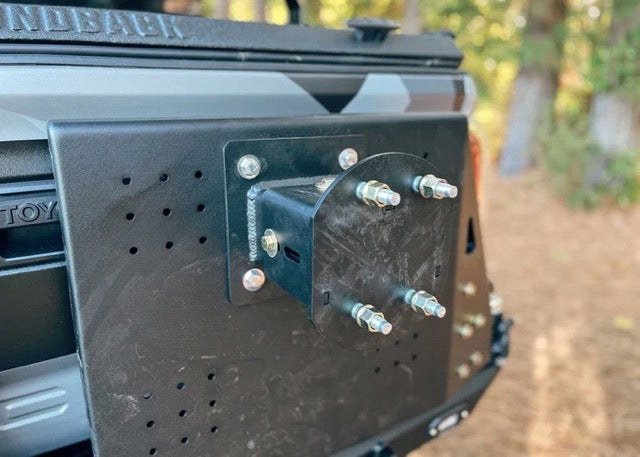

- (Optional) adjustable tire carrier (fits up to a 35" tire)
- Total weight: 190lbs
