AEV - Colorado Crestone DualSport Wheels

AEV

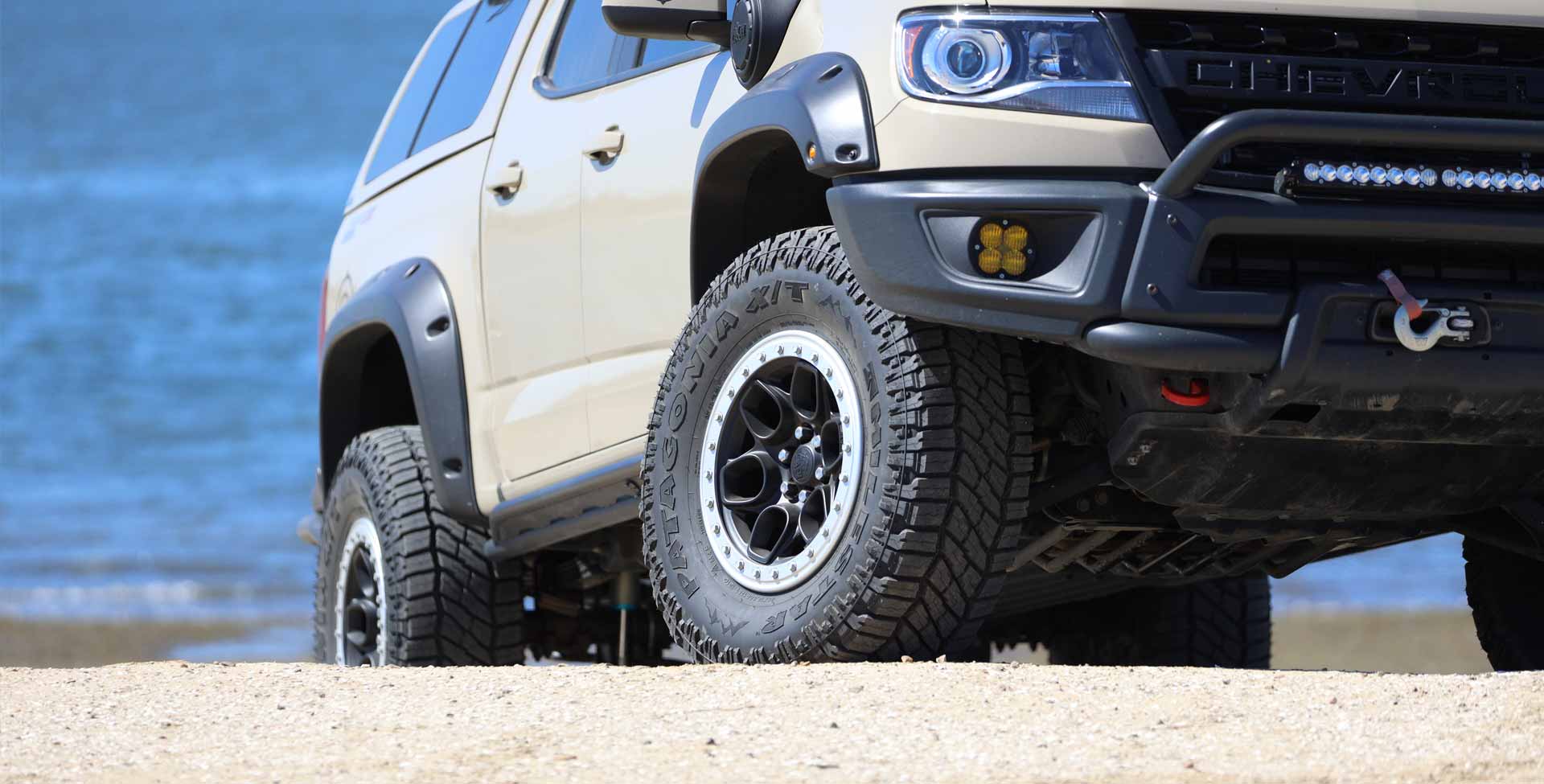

The 17×8 Crestone DualSport Wheel is AEV’s first dedicated wheel for the Chevrolet Colorado and Colorado ZR2 mid-size pickups. The Crestone’s split 6-spoke design gives it an ultra-modern look while providing drivers with the flexibility and versatility that AEV’s line of DualSport Wheels are known for. This wheel can be purchased with a fully-functional Beadlock Ring for running very low air pressure off-road, a Protection Ring for street use and added protection off-road or no ring with black hardware for a more simplistic look. In addition, both the Beadlock Ring and Protection Ring can be easily painted for a custom appearance.

The DOT-compliant AEV Crestone DualSport Wheel is made from heat-treated A356 T6 cast aluminum for maximum strength and to minimize weight. Further, AEV thoroughly tested the Crestone wheel to stringent SAE J2530 standards.

The Crestone DualSport Wheel is Tire Pressure Monitoring System (TPMS) compatible, and features a valve stem recess to protect the tire valve from being damaged out on the trail. AEV’s Crestone wheel is available in a painted Onyx finish. Beadlock/Protection rings are available in either a painted Silver or Onyx finish.

These wheels WILL work with OE lug nuts, wheel locks and lug wrench.

Available Configuration Options:

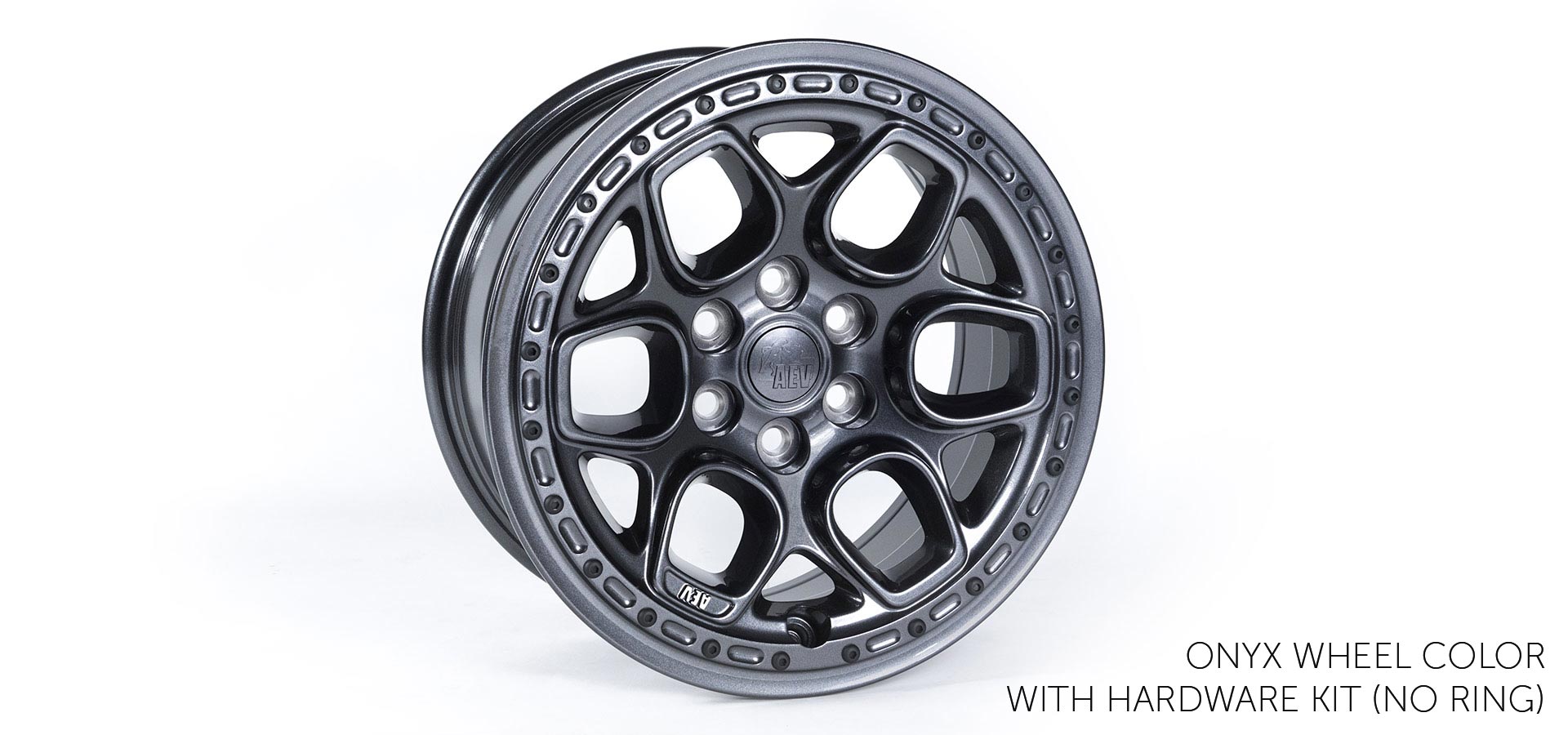

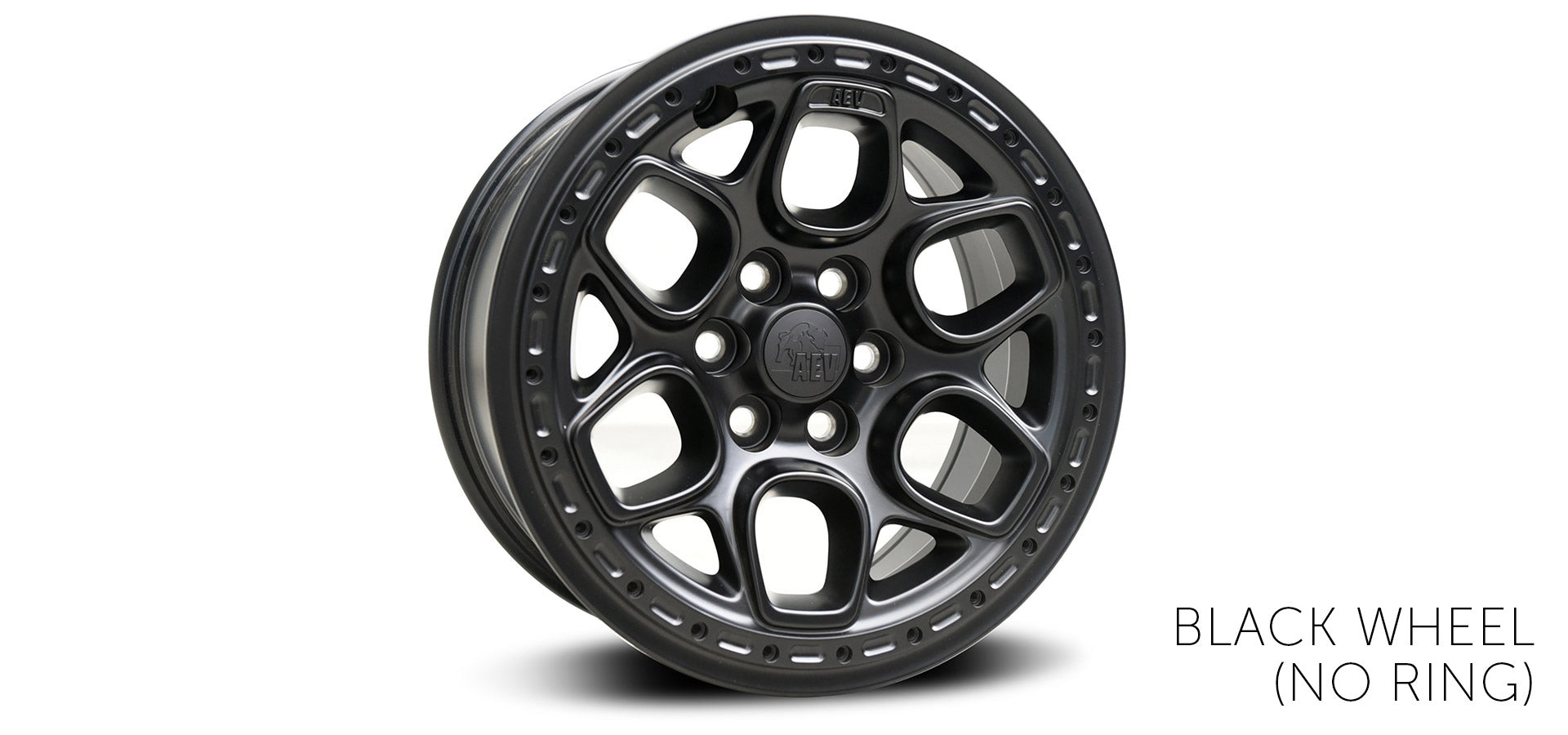

  • No Ring – The Crestone wheel can be installed without a ring for a simple one-color look. AEV supplies black nylon hardware for this configuration to prevent dirt and debris from building up inside the threaded bolt holes.

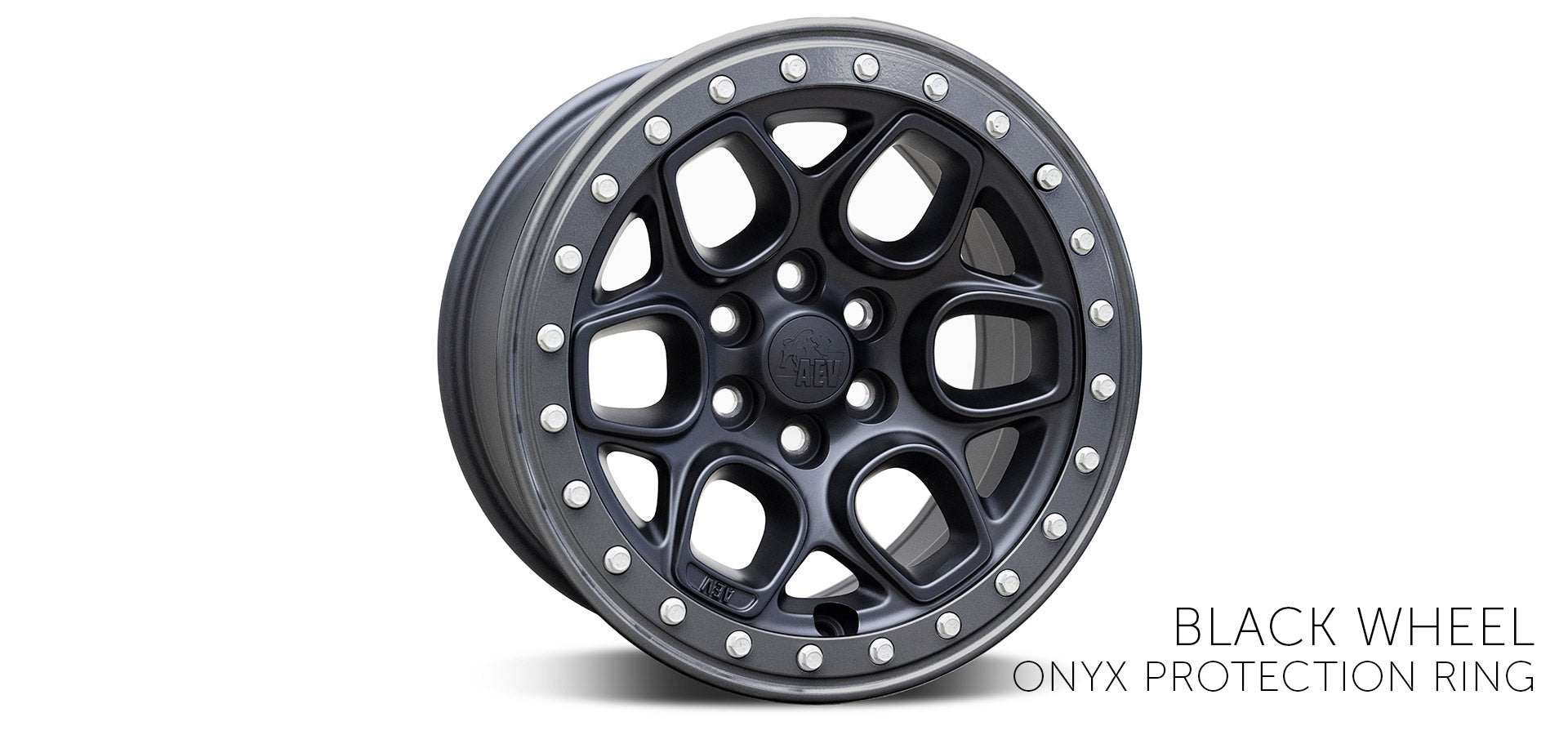

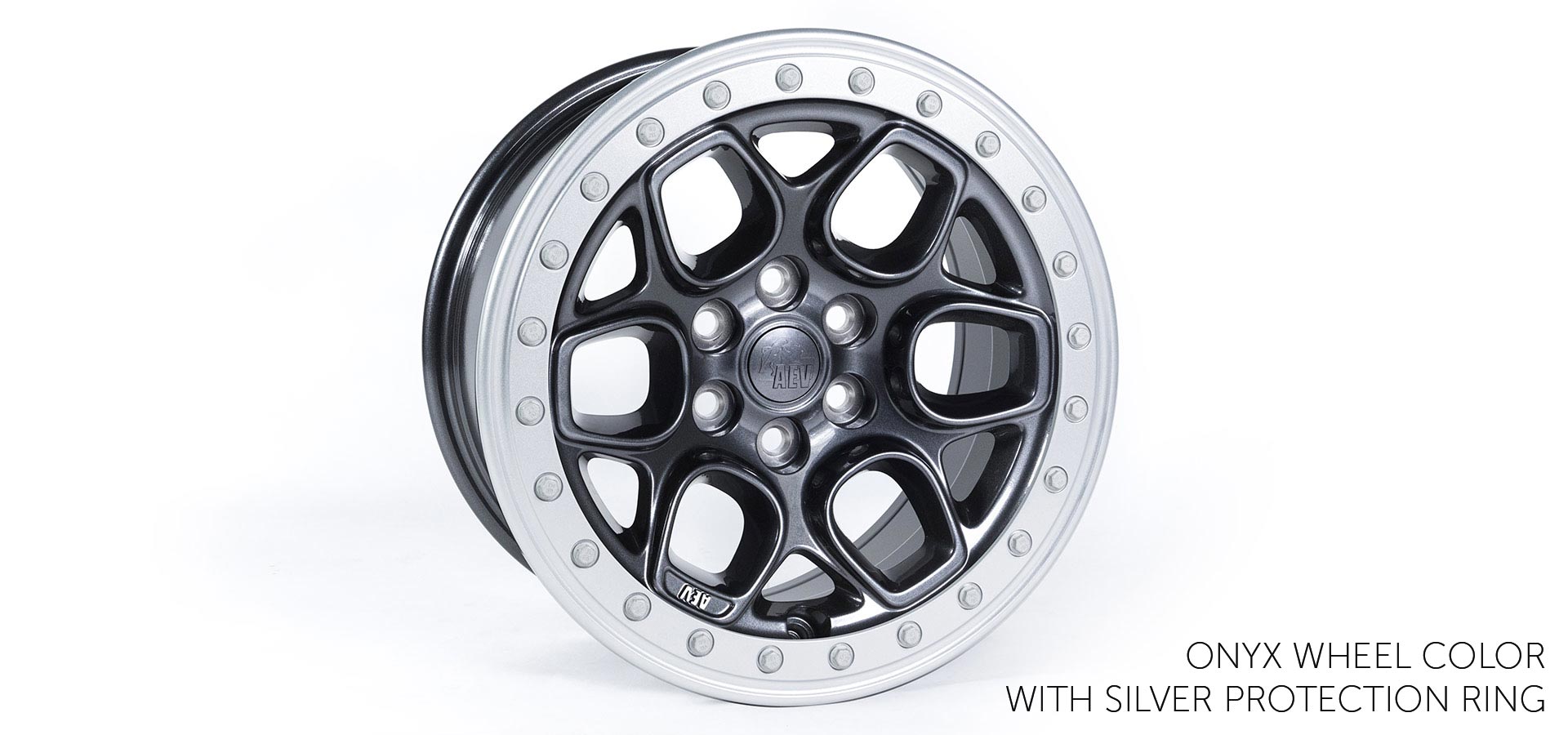

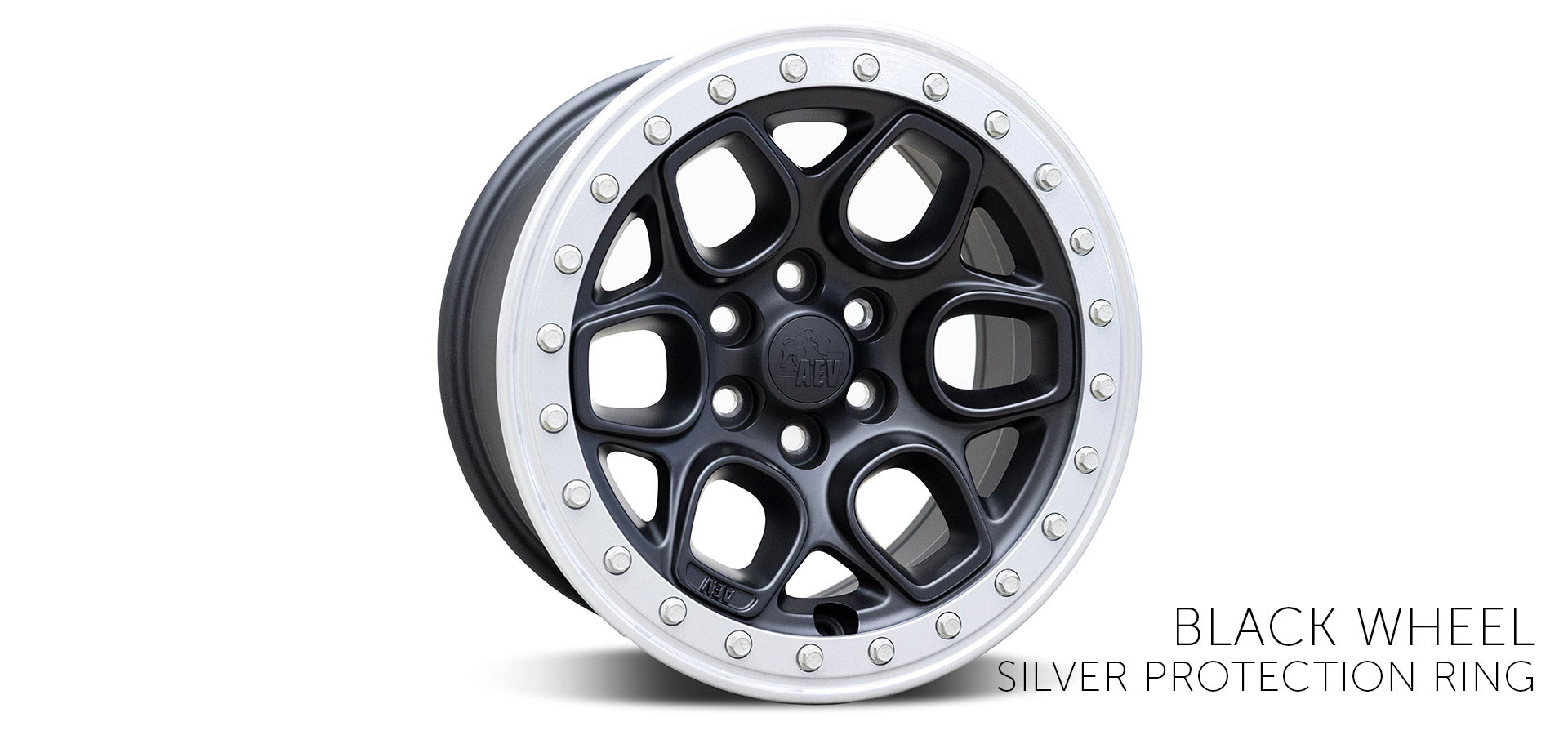

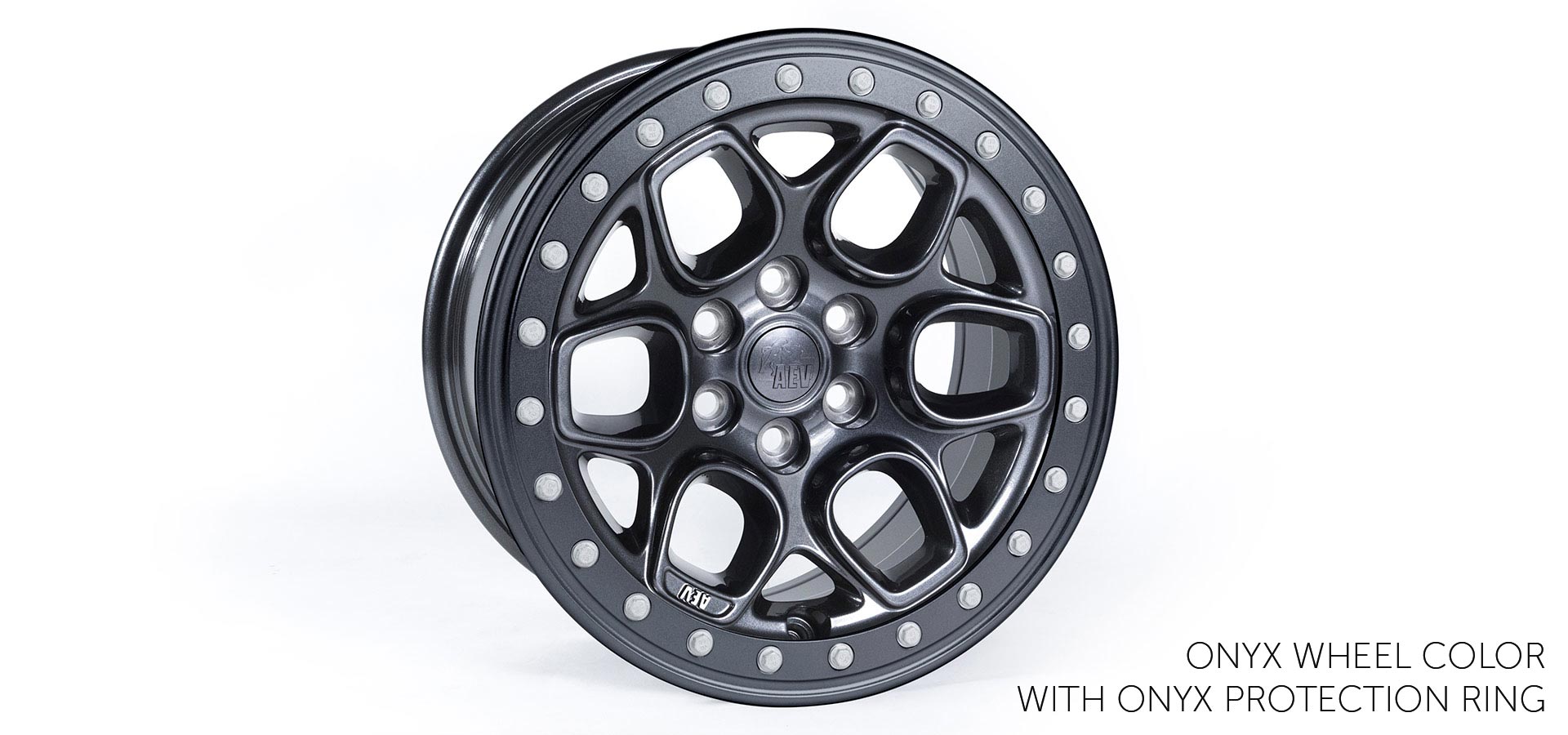

  • Protection Ring – The Protection Ring is a non-functional cast aluminum ring, designed as a sacrificial part to protect the wheel from trail scratches while also providing the same look as the Beadlock Ring. The Protection Ring includes Grade 8.8 hardware and is 50-state legal.

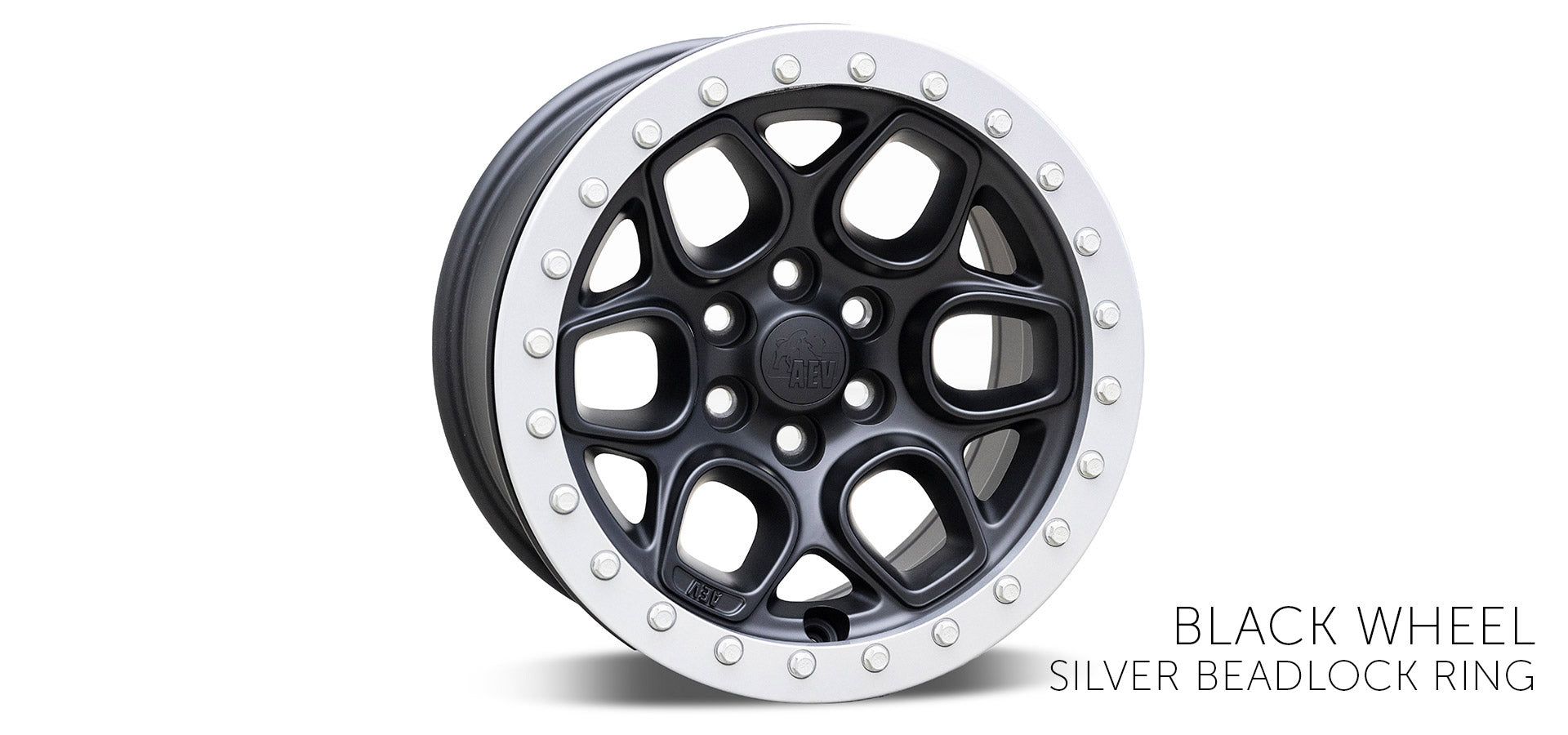

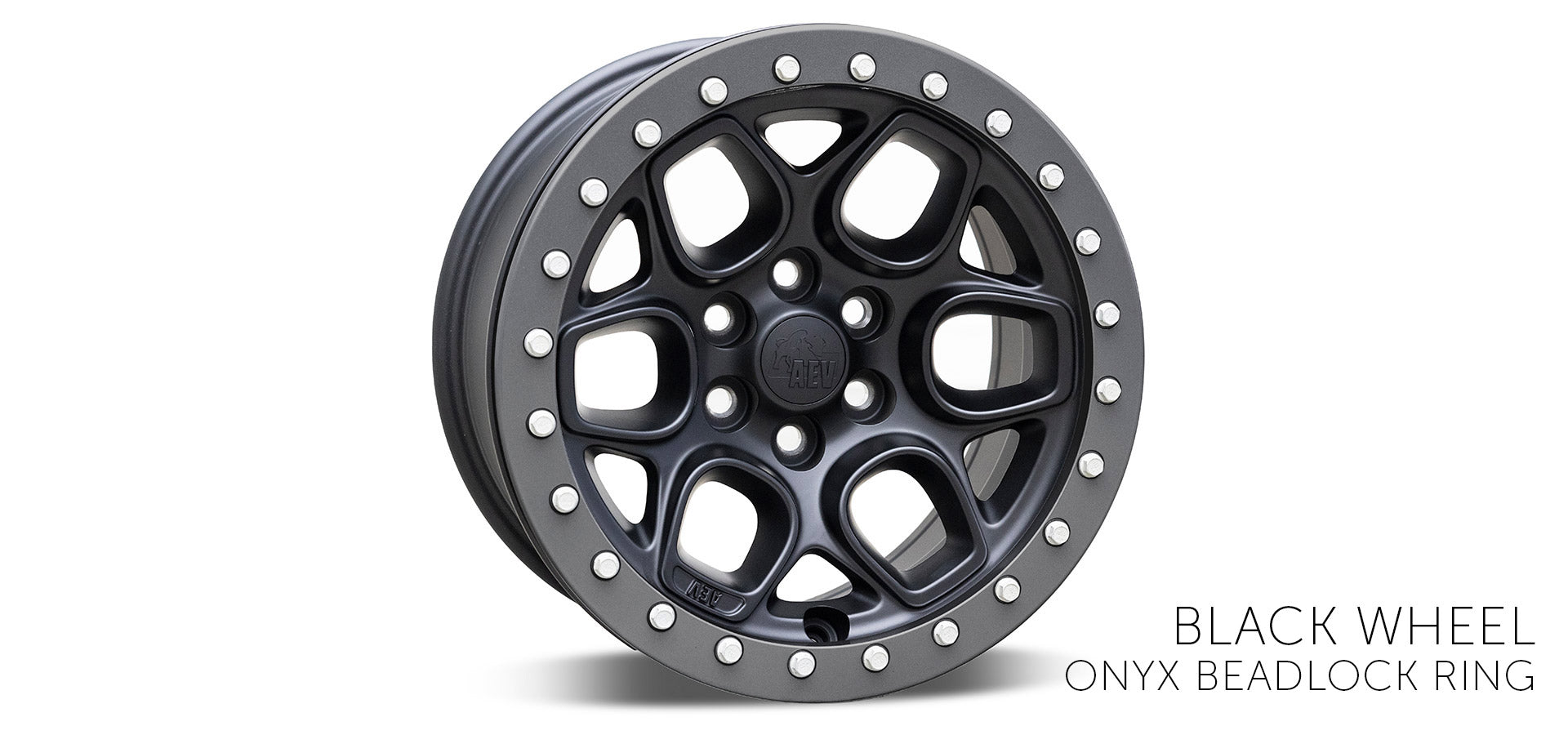

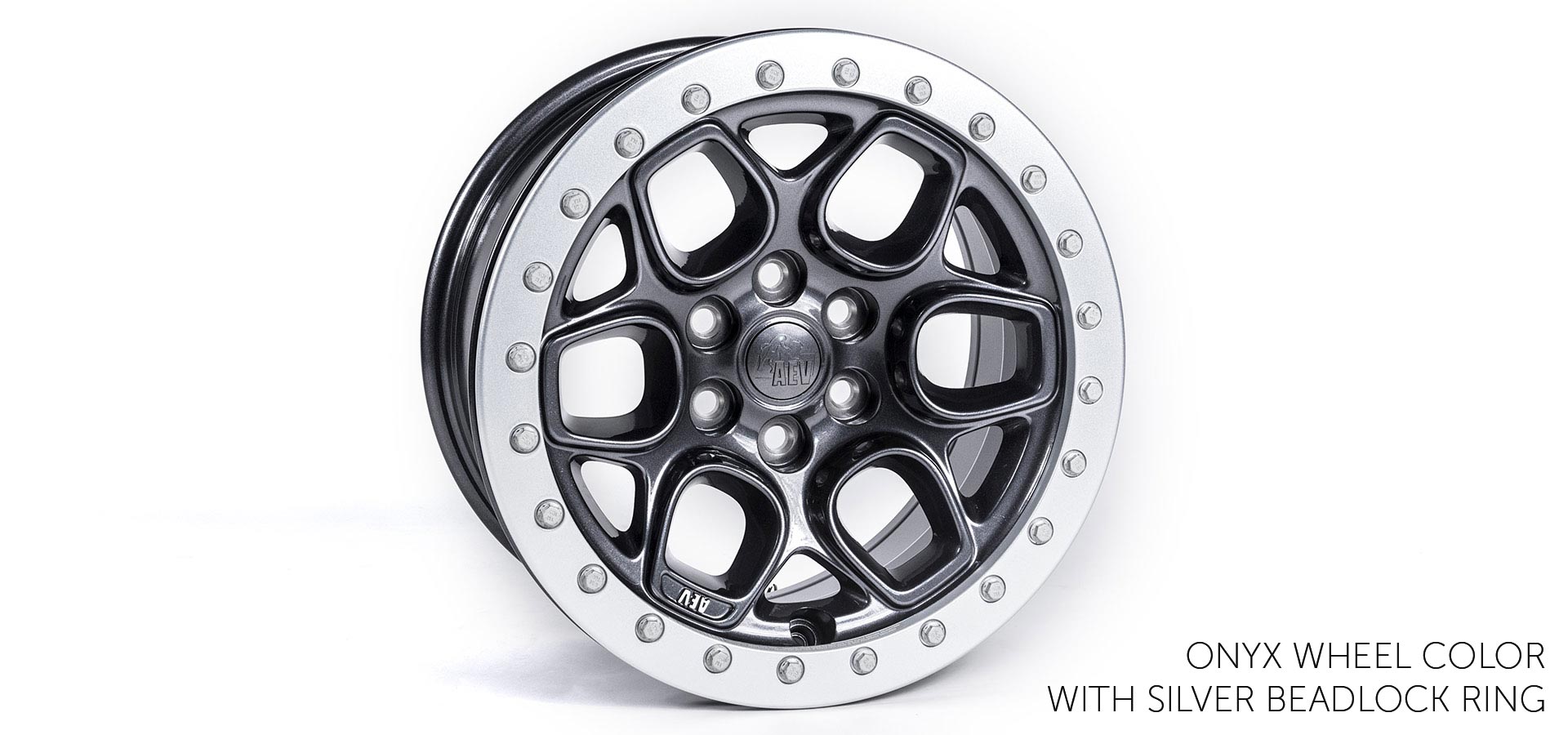

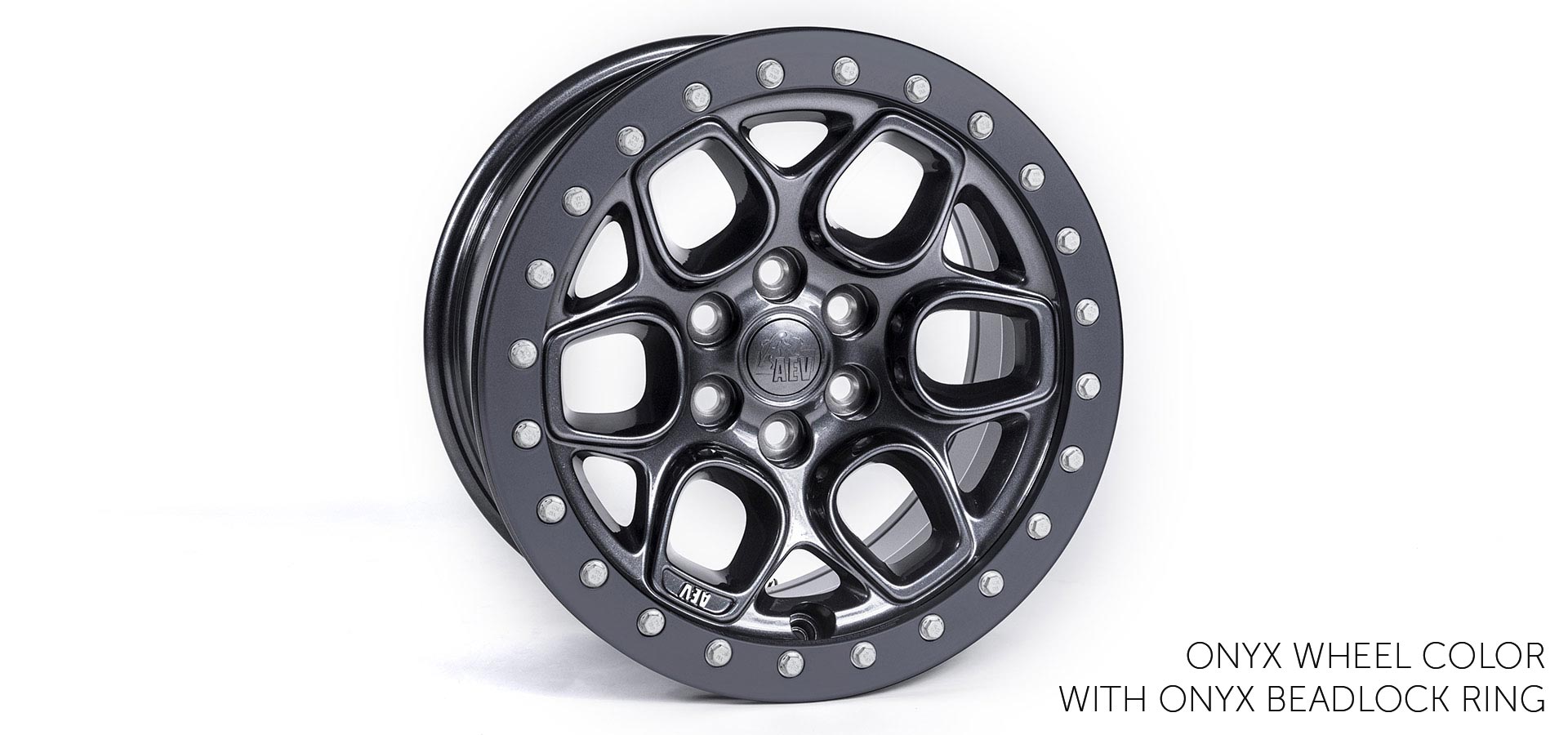

  • Beadlock Ring – The Beadlock Ring is designed with maximum strength and off-road durability in mind by utilizing a 16mm thick, forged aluminum beadlock ring and custom Grade 10.9 metric hardware for increased shear strength and higher torque requirements. AEV recommends that the Beadlock Ring be used for off-road purposes only.



TECH SPECS:

Manufacturing Process:
  • Low pressure permanent mold casting
Material:
  • A356/T6 Aluminum
Coatings:
  • Liquid clear coat,
  • Liquid color coat,
  • Powder Primer
Size:
  • 17" x 8"
Bolt Pattern:
  • 6x120
Offset:
  • +25mm
Approximate Backspacing:
  • 5.5"
Weight Rating:
  • 2,400 lbs
